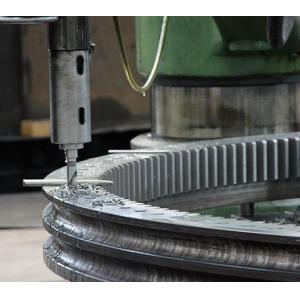

Double row ball slewing bearing

Double row ball slewing bearing

The double row ball slewing bearing has three seat rings , the steel ball and the spaces can be directly arranged into the upper and lower races. Two rows of steel balls are fitted according to the force born . Open mode fitting is extraordinary convenient .The load angles of both upper and lower race are 90°,which enable to bear large axial force and the tilting moment.

Send Email Call Us
AddThis Sharing Buttons
Share to FacebookFacebookShare to TwitterTwitterShare to LinkedInLinkedInShare to PinterestPinterestShare to ...AddThis
Introduction Industry Video Send Message

Introduction

The double row ball slewing bearing has three seat rings , the steel ball and the spaces can be directly arranged into the upper and lower races. Two rows of steel balls are fitted according to the force born . Open mode fitting is extraordinary convenient .The load angles of both upper and lower race are 90°,which enable to bear large axial force and the tilting moment.

As the axial and radial dimension of the double row ball slewing bearing are rather large , structural is tightening and can support high static loads. They are mainly used in situations with variational load position and direction and continuously rotating . Especially suitable for tower cranes which require working radius over medium range , mobile crane and loading and unloading machinery .

Different dia PRODUCT SPECIFICATION

ModelBoundary dimensions(mm)Bolt hole diameter(mm)Gear parameters(mm)Weight
Non-gearExternal gearInternal gearDdHD1D2nmDa Zda ZbXkg
020-25-500021-25-500023-25-50061638410658042020564512635572600.5100
022-25-500024-25-50061638410658042020664810534859600.5100
020-25-560021-25-560023-25-56067644410664048020570513841584600.5115
022-25-560024-25-56067644410664048020670811540869600.5115
020-25-630021-25-630023-25-63074651410671055024679212948081600.5130
022-25-630024-25-6307465141067105502487929647260600.5130
020-25-710021-25-710023-25-71082659410679063024686414155894600.5140
022-25-710024-25-71082659410679063024886410555270600.5140
020-30-800021-30-800023-30-80094265812489870230898412061678800.5200
022-30-800024-30-80094265812489870230109909661062800.5200
020-30-900021-30-900023-30-90010427581249988023081088133712
