Windows7 System SMT Placement Machine 40000CPH Surface Mount Machine

    Buy cheap Windows7 System SMT Placement Machine 40000CPH Surface Mount Machine from wholesalers

    Buy cheap Windows7 System SMT Placement Machine 40000CPH Surface Mount Machine from wholesalers
    • Buy cheap Windows7 System SMT Placement Machine 40000CPH Surface Mount Machine from wholesalers

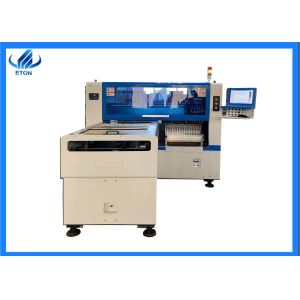

    Windows7 System SMT Placement Machine 40000CPH Surface Mount Machine

    Ask Lasest Price
    Brand Name : ETON
    Model Number : HT-E8S
    Certification : ccc,ce
    Price : FOB USD 49000~59000/sets
    Payment Terms : T/T, L/C
    Supply Ability : 50 sets per mouth
    Delivery Time : 30 work days after deposit
    • Product Details
    • Company Profile

    Windows7 System SMT Placement Machine 40000CPH Surface Mount Machine

    led bulb flexible strip light smt led chip placement machine


    Details
    1.High-speed magnetic linear motor multi-functional pick and place machine
    2. Single module, 8 head pasted on the 8 suction nozzles discharge at the same time
    3. The flying camera component identification, maximize placement rate, maximum patch speed 45000 CPH
    4.Exclusive patent technology: electronic feeder feeding system, faster and more accurate, MARK correction, non-stop material re-loading system, save time cost and artificial cost. The maximum size of PCB is 1200*350mm


    Application
    Components:0402,led,capacitor,resistor,shaped components,etc
    Products:all kind of led light,such as led bulbs,led tube,down light,street light,led display screen,lens,power driver,electric board,etc


    functional characteristics
    1.high stability:with magnetic linear motor,servo motor driving X,Y,Z axis.
    2.Powerful functions: different feeder can be configured to meet the mounting requirements of various LED products.
    3.simple operation: Chinese and English graphical interface, easy to operate. Simple programming, can be saved and edited files, arbitrary call;
    4.Easy maintenance: simple design and easy maintenance. Low cost of replacement parts, low maintenance cost.


    HT-E8S
    PCBPCB length widthMax:1200*300mm min:100*100mm
    PCB thickness0.5~5mm
    O.S.systemWindows 7
    softwareR&D independently

    Vision

    system

    No.of camera

    2sets of imported camera

    Vision for the alignment identification,mark correction

    Mounting precision0.02mm(repeat precision)
    Mounting height<36mm
    Mounting speed40000CPH
    Components space0.2mm
    No.of feeders station30PCS
    No.of nozzles8PCS
    Power380AC 50HZ
    Power consumption4KW
    Electrical controlIndependent research and development by ETON
    Motion control card module 1setIndependent research and development by ETON
    X,Y,X axis drive wayServo motor control for X,Y,Z axis
    Feeding wayElectric feeder with double motor



    Company Profile
    1.ETON is a leading manufacturer of automatic high-speed pick and place machine in China.Have own industrial park in Jiangxi.It's been 10 years.
    2.Obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents,12 software copyrights.
    3.”High efficiency””high quality””high stability” are the core technology of ETON.


    Our Services
    1.Video technical support,24-hour online support
    2.Visit customers regularly and gather information.
    3.Goods tracking support
    4.Free broken parts(Within 1 YEAR warranty )
    5.Upgrade the software will be free


    FAQ:
    Q : Is there any quality guarantee?
    We stick to quality first, client-oriented, Continuous improvement!
    Q: What is SMT Machine?
    This is an LED lamp patch machine using surface mount technology.
    Q: What’s the terms of payment? What about the trade term?
    T/T is OK. You can choose FOB Shenzhen.
    Q: What is the delivery date?
    We will deliver the goods after 30 days' deposit.
    Q: How about your operating system?
    The operating system is Windows 7. The software is developed independently. It supports Chinese and English operation interface. And It has simple structure and is easy to operate.
