20000kg C Channel Roll Forming Machine 300mm Metal Roof Tile Making Machine
1. Description of C U Z Purlin Roll Forming Machine
C Z purlin forming machine can be designed with Z , that is CZ purlin forming machine, with different sizes of 100-300mm, three sets of punching, and raw material thickness of 1.5-3.0mm, which basically meets the needs of different purlins on the market.or only C purlin machine from 3 inch to 10 inch, or punch holes or what thickness of raw material.
2. Specifications of C U Z Purlin Roll Forming Machine
| Purlin Roll Forming Machine | ||
| Machinable Material : | A) Galvanized Coil | Thickness(MM): 1.5-3 |
| B) PPGI | ||
| C) Carbon steel Coil | ||
| Yield strength : | 250 - 550 Mpa | |
| Tensil stress : | G350 Mpa-G550 Mpa | |
| Decoiler : | Manual decoiler | * Hydraulic decoiler (Optional) |
| Punching system : | Hydraulic punching station | * Punching press (Optional) |
| Forming station : | 18-20 stations | |
| Main machine motor brand : | Shanghai Dedong (Sino-Germany Brand) | * Siemens (Optional) |
| Driving system : | Chain drive | * Gearbox drive (Optional) |
| Machine structure: | Wall panel station | * Forged Iron station (Optional) |
| Forming speed : | 10-20 (M/MIN) | * Or according to your profile drawings |
| Rollers’ material : | Steel #45 | * GCr 15(Optional) |
| Cutting system : | Pre-cutting | * Post- universal cutting (Optional) |
| Frequency changer brand : | Yaskawa | * Siemens (Optional) |
| PLC brand : | Panasonic | * Siemens (Optional) |
| Power supply : | 380V 50Hz | * Or according to your requirment |
| Machine color : | Industrial blue | * Or according to your requirment |
3. Profiles of C U Z Purlin Roll Forming Machine

4. Flow chart of Purlin Roll Forming Machine
Decoiling – Feeding - Flattening — Lip forming - Flange forming - Angle forming – Straightening - Punching - Cutting – Stacking

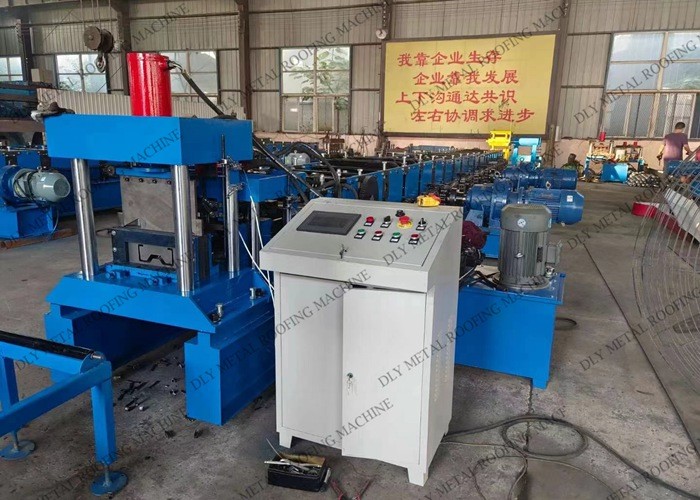

5. Detail photos of C U Z Purlin Roll Forming Machine




|
