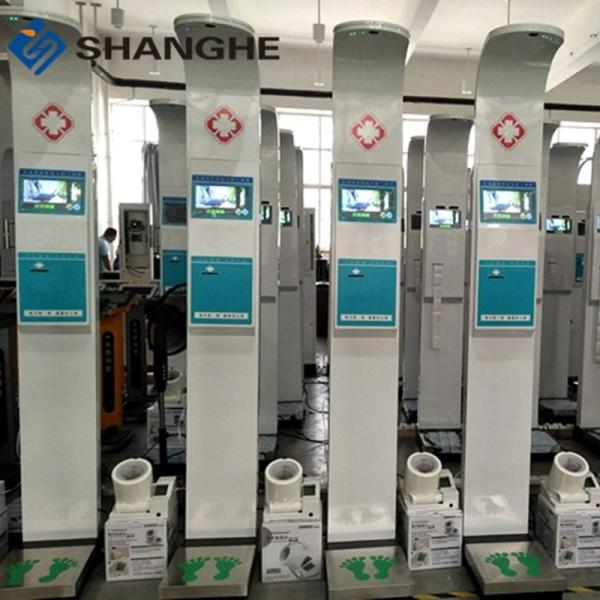

SH-10XD Ultrasonic Electronic Height Weight Blood Pressure Fat
Pulse Bmi Scale
Basis Information:
SH-10XD body Scale can accurately measure height, weight, body mass
index (BMI),blood pressure,heart rate,pulse,fat percentage, fat
mass, body water content, muscle, protein, etc. Automatic voice
broadcast of measurement results,thermal intelligent printing.The
large high-definition screen adopts a 10.1-inch hd LCD display
system, which can play promotional videos, pictures, etc.
Technology:
Model
| SH-10XD |
| Height measurement | Measuring system:Touchless ultrasonic height sensor
|
Measurement range: 20-210cm
|
Measure accuracy: ±0.5cm Indexing value: 0.5 cm or 0.1 cm (adjustable)
|
| Weight measurement | Measuring system:Precision resistance strain sensor
|
| Measurement range: 2-500kg |
Measurement accuracy: ±0.1kg Indexing value :0.1 kg or 0.01 kg (adjustable)
|
| BMI(Body mass index) | Automatic display
|
| Blood pressure | Measuring principle: Intelligent pressure technology, oscillometric method
|
Measuring range: Pressure: 0-299mmHg, Pulse: 40-180 beats/min
|
Measurement accuracy: Pressure: ±4mmHg ( ±0.5kPa), Pulse rate: accuracy of ±5%
|
| Body composition | Measuring principle: 4 electrodes. Human body bioelectrical impedance method
|
Measuring frequency:50Khz Measuring current: 90uA or below
|
Measuring range:75.0-1500.0Ω
|
| Weight | Gross weight:45kg Net weight:40kg
|
Product Advantage:
Ultrasonic non-contact measurement
10.1 inch LCD advertising screen
Support multi-languages
Intelligent voice broadcast, guide measurement
Thermal paper printing without ink
Data output options: RS232, Bluetooth(Optional), WIFI(Optional)
Functions:
1.Ultrasonic height probe :20-210cm
2.High precision load cell :2-500kg
3.Blood pressure and heart rate measurement:standing / sitting /
free disassembly
4.Human body biological resistance, touch measurement, can analyze
body fat mass, muscle mass, body water, protein, basic metabolism,
body bone mass, etc.
5.The machine have wheels at the bottom,easy to transport and move
6.The measurement data can be transmitted via RS232 serial port,
Bluetooth, WIFI, cloud transmission and other methods .
