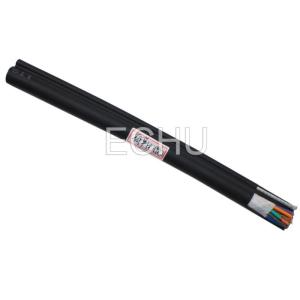

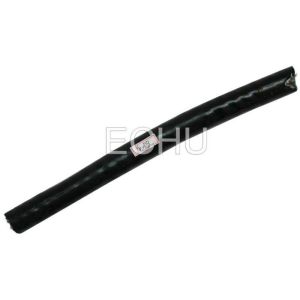

Round Pendant Control Cable with 1 Steels For Crane and Lifter RVV1G 9*1.0MM2

Pendant Cable :
Special flexibility
Temperature range:-15 to +70
Bending radius :20 X outer diameter
one or two steel rope

Applications:
It is the control cable being used for cranes and other appliances in dry or wet indoor.

Properties:

In the condition of ultra-height, we recommend to use cable with 2 steels whose broken pulling force reaches 10.4GN and the height 150m. For the adoption of modified PVC sheath,the product has an excellent properties and safty service.

Structure:

Conductor: Fine strands of oxygen-free copper wire. According to VDE0295 CLASS 5.

Color: Various color cores with number Acc.to JISC3306

Black wit white number and green/yellow acc.to IEC227

Inner liner: non-woven fabric wrapping to release impact

Steel rope: One or two self-supporting steel rope is used to carry tensile force in working.

Outer sheath: special PVC, black (RAL9005)
Rated Voltage:<1.5mm2: 300/500v, >1.5mm2 :450/750v Test Voltage:<1.5MM2:2500V , >1.5MM2:3000V

Shanghai ECHU Wires & Cables Co.,Ltd was established in 2005 as the Shanghai high-tech enterprises, focusing on research and development and innovation in wires and cables field. The new robot cables obtained several patents, which has laid a firm position in the robot cable applications research and development . At the same time, ECHU CABLE is a professional R & D production of wires and cables used in various special occasions, personalized custom manufacturing to meet the different needs of customers.

ECHU CABLES Products: Robot cable, twisted-resistant cable, drag chain cable, highly flexible cables, bend-resistant cable, elevator traveling cable, crane cable, travelling cable, shielded cable, solar cable, charging pile cables, high temperature cable, power cable, Japanese standard cable, CE cable, UL cables, CCC cable, reeling cable, security cables, industrial harnesses integration and so on…

ECHU CABLES FACTORY passed the ISO9001 certification early on build year to ensure that products from the purchase of raw materials to finished product delivery to go through dozens of testing, strict control process to ensure that products fully comply with quality standards, the ECHU company's products are accepted by the CCC certification, UL certification, CE certification.

ECHU CABLES company R & D team constantly tackling innovation, has won the "new Robot cable", "multi-joint robot arm shielded professional cable" "multi-joint robot arm unshielded cable", "drag chain cables", "wind-resistant cable twisted turn," "electromagnetic compatibility of the servo cable "" Integrated flat cable "" flat cable "" Network Cables "" bus cables "and which got more than 10 patents. Research and development of proprietary products, "drag chain cables" won the China Product Quality Supervision Commission and the Chinese brand products Recommendation Commission jointly issued the "China wire and cable's Top Ten brands" and "China Quality 500" certificate in 2010 was awarded the wire and cable industry association "substitute foreign high-end wire and cable best brand", the company was invited to join the Shanghai Electric Wire & Cable Industry Association and was named the Shanghai contract and keeping promises units. ECHU CABLES people always uphold the concept of excellence, the pursuit of a more superior quality, made the honor will inspire more people continue to forge ahead ECHU! Continue to improve the localization of high-end wire and cable manufacturing.

ECHU company has the following operators, service our customers and friends to accompany ECHU grow together!

Shanghai ECHU Wires & Cables Co.,Ltd. is located in Shanghai's Pudong New Area, set production and sales in one of the core operations control center.

ECHU special wire and cable (Kunshan) Co., Ltd. is invested nearly 300 million in Zhouzhuang city , Kunshan, Jiangsu Province to build a second production base.

Shanghai ECHU HI-TEMP. Wire and Cable Co., Ltd. and Shanghai ECHU harnesses have been operating for the special needs of customers .

ECHU company has offices in various provinces and cities in China to provide customers with more attentive service!

ECHU Products covered tens of thousands of varieties of cables we can supply, For the limited space, not all products are listed here, if any demands for the cables , please call or visit our website to contact us..
