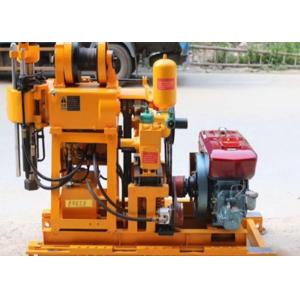

    Buy cheap Easy Operation 100m Engineering Core Drilling Rig  XY-1 For Sample Collecting from wholesalers

    Buy cheap Easy Operation 100m Engineering Core Drilling Rig  XY-1 For Sample Collecting from wholesalers
    • Buy cheap Easy Operation 100m Engineering Core Drilling Rig  XY-1 For Sample Collecting from wholesalers
    • Buy cheap Easy Operation 100m Engineering Core Drilling Rig  XY-1 For Sample Collecting from wholesalers

    Easy Operation 100m Engineering Core Drilling Rig XY-1 For Sample Collecting

    Ask Lasest Price
    Brand Name : JINZHOU SHITAN
    Model Number : xy-1
    Certification : ISO
    Price : Neogotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 2000 sets per year
    Delivery Time : 7-12 days
    • Product Details
    • Company Profile

    Easy Operation 100m Engineering Core Drilling Rig XY-1 For Sample Collecting

    Easy Operation 100 Meters Engineering Core Drill Rig XY-1


    XY-1 Core Drill Rig Description


    XY-1 drilling rig is a small portable drilling rig with 100 meters depth ,100mm hole diameter ,It is suitable for drilling in reconnaissance, geophysical exploration, road and building exploration, blasting holes and other drilling engineering.Alloy, steel grit and steel drop bits can be chosen according to the different strata.


    XY-1 Core Drill Rig Parameter


    Drill
    Drilling depth100m
    Drill rod diameter42mm
    Initial hole diameter110mm
    Final hole diameter75mm
    Angle range75-90
    Dimensions (L*W*H)1640*1030*1440(mm)
    Dimensions (L*W*H)1640*1030*1440(mm)
    Weight without power unit500kg
    Stroke XY-1(JY)350mm
    Swivel Head
    Spindle speed (3 speed)

    142,285,570 r/min

    Spindle stroke

    450mm

    Upward displacement speed of drilling vertical spindle

    0.05m/s

    Downward displacement speed of drilling vertical spindle

    0.067m/s

    Spindle pull-down max15KN
    Spindle lifting capacity max25KN
    Max.lifting capacity (1 speed, single rope)10KN
    Cable volume (number) of hoisting drum27m
    Wire rope diameter9.3mm
    Water Pump
    ModelHorizontal reciprocating single-acting piston pump
    Equipped with diesel engine95L/min
    Equipped with motor77L/min
    Allowable working pressure max1.2Mpa
    Continuous working pressure0.7Mpa
    Suction pipe diameter32mm
    Discharge pipe diameter25mm
    Oil Pump
    ModelYBC-12/125
    Displacement12.5Mpa
    Rated speed800-2500r/min
    Power (diesel engine or motor)
    Model (diesel engine)ZS1100
    Rated power12.1KW
    Rated speed2200r/min
    Motor
    ModelY132M-4
    Rated power7.5KW
    Rated speed1440r/min


    XY-1 Core Drill Rig Features


    1. It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism.

    2. It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.

    3. It has hole bottom pressure gauge to be easy to master the situation in the hole.

    4. It also has advantage of Compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move. It can be operated in plains and mountain areas.


    XY-1 Core Drill Rig Applications


    1. Drilling construction for high-rise building, highway, railway, bridge, port, harbor work, dam and tunnel;

    2. Small-diameter hole foundation piling drilling;

    3. Solid mineral exploration;

    4. Anchoring engineering for battered slope;

    5. Geothermal pipe-installing for heat pump.


    Why is the water well drilling rig not suitable for use in rainy days?


    After the well is completed, it is necessary to pump water to check the results. Under normal circumstances, a large draw down pumping can be done. The stable duration of the water level shall not be less than eight hours, and the water flow of the dynamic water level of the well shall be measured at the same time. The well drilling project shall ensure the smooth drainage of the construction site, so the rainy season shall be avoided. When working while excavating, the excavation slope shall be determined according to the physical and mechanical properties of the soil layer, generally 1:1.5, and there shall be a certain distance from the toe of the spoil slope to the upper opening of the excavation. For large wells with water inflow from the shaft wall, the water inlet hole and inverted filter layer of the shaft wall must be arranged according to the design requirements, and the water inlet hole shall be prevented from being blocked during construction. The filter material enclosure at the aquifer shall meet the requirements, the backfill shall have a certain super elevation, and the frozen soil in the backfill in winter shall not exceed 15%.

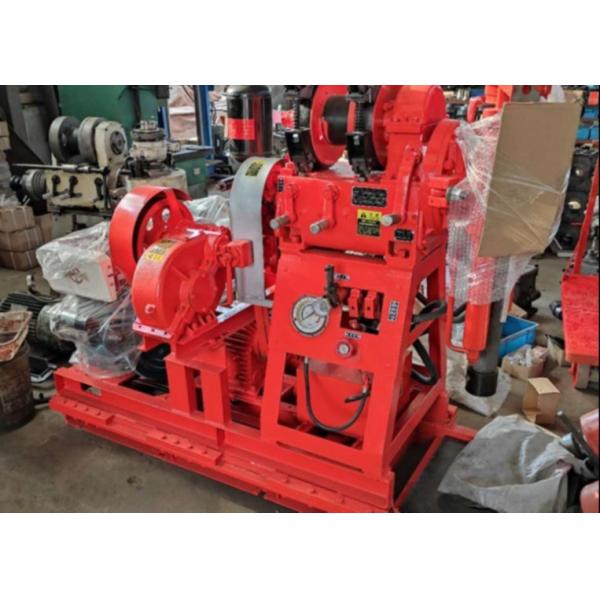

    Quality Easy Operation 100m Engineering Core Drilling Rig  XY-1 For Sample Collecting for sale
