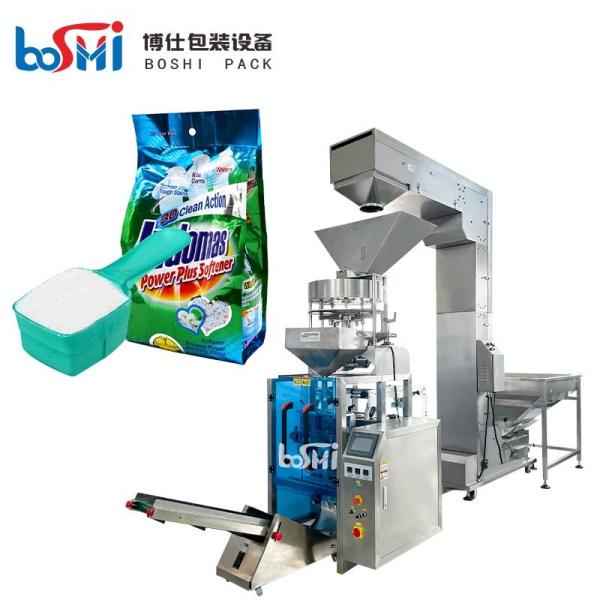

Automatic Washing Powder Detergent Powder Packing Machine
Product Description:
Start machine till the temperature constant→set the parameters(bag
length and packing weight)→feeding product→automatic filling
machine→date printing→forming bag→filling→sealing→cutting→exit
conveying；(driving film by a pair of belt:low resistance,driving
film fast)
Application:
Applicable for the puffed food, nuts, seeds, potato chips, peanut,
pistachio, dried fruit, vegetable salad, frozen dumplings, rice,
corn, dilatant foodstuff, etc. Various kinds of granular.
Standard Features:
1. ALL our machine with CE certification.
2. DELTA servo motor for horizontal drawing film, double belt,
stable and good performance
3. DELTA PLC computer touch screen, language can be custom.
4. Combine with weigher system, it can finish the process of
feeding, weighing filling, bag making, printing.
5. Bag type: It can made base on customer's requirement
6. Bag size is adjustable.
7. Easy to install film, auto correcting the excursion of the film
Specdification:
Model | BS-420V |
| Measure system | Volumetric cup |
| Measuring range | 20ml-1200ml(need to change the cups) |
| Cup capacity | 80L |
| Accuracy | +/-1% |
| Film width | Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length | 50-300 mm |
| Packing speed | 10-70 bags/ min |
| Type of sealing | Pillow bag,3 or 4 side seal and gusset bag,etc. |
| Packing material | OPP/CPP, OPP/CE,PET/PE etc. |
| Power | 2KW |
| Air consumption | 0.65 mpa |
| Gas consumption | 0.3 cubic meter/ min |
| Machine dimensions | 1080*1300*1400 mm |
| Machine weight | 600 kg |
