External Omni Directional 5G NR Antenna 3500MHz CBRS 5G Terminal Antenna

1. Product Name

External Omni Directional 3500MHz CBRS 5G Terminal Antenna

2. Description

--2.1 Applications

Worldwide 5G (Sub-6G)

Private Cellular Networks--Citizens Broadband Radio Services (CBRS)

Emerging 5G C-Band Applications

Internet of Things (IoT) Devices

--2.2 Features

Performance at 3300-3800MHz

VSWR < 2.0

Peak Gain : 7dBi

Efficiency : 66%

Hinged Design with Detents for Straight, 45Degree and 90Degree Positioning

SMA Plug (Male Pin)

3. Introduction

This is a dipole, blade-style antenna for 5G New Radio applications.

The hinged design allows for the antenna to be positioned for optimum performance and reduces the potential for damage from impact compared to a fixed whip design. The antenna attaches with an SMA plug (male pin) connector.

4. Specs

Electrical Properties

Mechanical Properties

5. Antenna Drawing

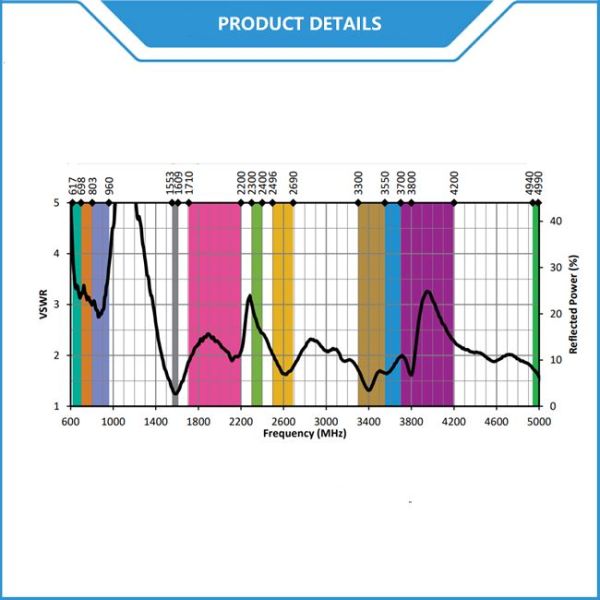

6. VSWR

7. Radiation Pattern
