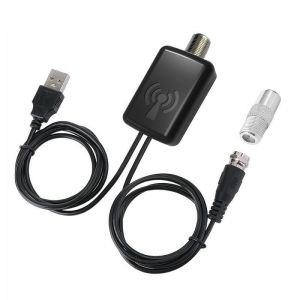

Indoor UHF VHF TV Antenna Amplified Digital DVB-T HDTV TV Antenna

Indoor UHF VHF TV Antenna Amplified Digital DVB-T HDTV TV Antenna

1. Product Name:

Indoor Amplified Digital HDTV TV Antenna

2. Description

Optimised reception for current DVB-T2 HD and DVB-T stations
Power supply possible via any USB port (television or desktop computer)
Wide range of set-up options and wall-mounting
Extremely thin DVB T2 antenna with with an excellent received unit
Extra-long 3m-5m supply cable

3. Applications

DVB-T (terrestrial) / DVB-T 2 (digital signal)
ATSC (terrestrial /cable)
ISDBT (terrestrial )/ ISDBTVD (Brazil )
DTMB (terrestrial –CHINA)
TDMB (terrestrial)

Features:

Suitable for digital (DVB-T/DVB-T2) terrestrial reception
Mounting possibility for horizontal and vertical polarization
Suitable for mast mounting
Frequency range: 470 – 862 MHz (UHF)

4. Specs

Electrical Properties

Mechanical Properties

5. Antenna Drawing

6. VSWR On Passive Test

7. Radiation Pattern On Passive Test

8. Installation Guide

Founded in 2009,MS TELECOM is one of the famous communication antenna designers, manufacturers and solutions suppliers in China.We manufactures antennas from 400 MHz to 5.8 GHz for applications such as 802.11a/b/g/n/ac, 3G Cellular GSM/CDMA ,4G,5G, WiFi ,WiMax, ISM, UHF ,VHF ,RFID and much more.


We have been in the wireless communication antenna industry for over 13 years. We have grown and evolved over the years , along with the industry. Our professional R&D team has developed,introduced new products and new technology to meet diverse need of customers and ensure we can work with new markets.
