    Pneumatic Candy Pouch Packing Machine , PLC Control Chocolate Packaging Machines

    Ask Lasest Price
    Brand Name : BOSHI
    Model Number : BS-420 BS-520 BS-720
    Certification : CE SGS
    Price : 5000USD-18500USD per set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 300 sets per year
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

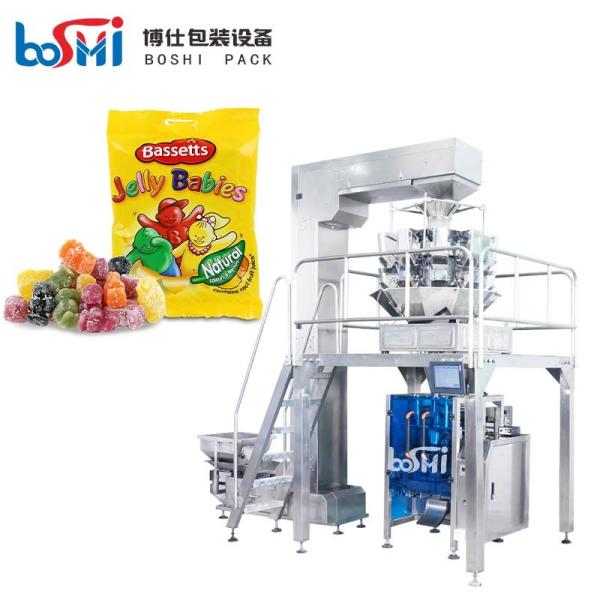

    Pneumatic Candy Pouch Packing Machine , PLC Control Chocolate Packaging Machines

    Automatic Chocolate Candy Pouch Food Packing Machine


    Main Features:
    1) Simple but stable structure in linear type ,easy in installation and long life time.

    2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
    3) High pressure double crank to control the die opening and closing.

    4) English and Chinese screen display, operation is simple, other language is acceptable.
    5) PLC computer system, function is more stable, adjustment any parameters not need stop machine.
    6) It can stock ten product datas, easy to change product.
    7) Servo driver and motor to control the roll film system.

    Applications:

    Suitable for frozen product, macaroni, hamburgers, popcorn, dry pasta,oats, puffed food, french fries, biscuit, rice crust,

    jelly, candy, dried fruit, apple flake, peanut, chocolate, frozen food, hardware and medicine such particle,

    strip and irregular shape.


    Whole machine main including 4 parts:

    1) Z type bucket elevator
    2) Multihead weigher
    3) Working platform
    4) Main packing machine
    5) Finished product conveyor

    Technical Parameters:
    ModelBS-420G
    Film widthMax.420mm
    Film thickness0.03-0.1mm
    Bag width50-200 mm
    Bag length50-300 mm
    Packing speed10-70 bags/ min
    Type of sealingPillow bag,3 or 4 side seal and gusset bag
    Packing materialOPP/CPP, OPP/CE,PET/PE etc.
    Air consumption0.65 mpa
    Gas consumption0.3 cubic meter/ min
    Machine dimensions1080*1300*1400 mm
    Machine weight600 kg
    Multi-weigher
    Weighting and filling systemHead weighers
    Weighting range10-3000g
    (Different product have different weighting range )
    Accuracy:Bias:+-0.5g
    Filling speed:65bags/min
    Hoper volume1.6/2.5L/5L
    Total power:1.0kw
    Weight
    380KG
