    128x48 Matrix Graphic LCD Module With SPI Interface HTM12848C

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : HTM12848C
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

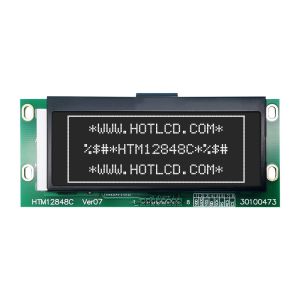

    128x48 Matrix Graphic LCD Module With SPI Interface HTM12848C

    128x48 Dot Matrix Graphic LCD Display
    Model : 128x48 LCM Graphic/HTM12848C
    Terminal Function
    Pin No.Pin NameFunction
    1VDDPower supply voltage (Positive)
    2LEDCN/C
    3VSSNegative power supply,0V
    4SIDB7 :serial data input (SI);
    5SCLKDB6 : the serial clock input (SCL).

    6


    A0


    A0 = “H”: Indicates that DB0 to DB7 are display data. A0 = “L”: Indicates that DB0 to DB7 are control data.


    7


    /RES


    Rester Pin(L->H)


    8


    /CS1


    This is the chip select signal.


    Absolute Maximum Ratings


    ItemsSymbolMIN.MAX.UnitCondition
    Supply VoltageVDD-0.3+5.5VVSS = 0V
    Input VoltageVIN-0.3VDD+0.3VVSS = 0V
    Operating TemperatureTOP-10+60No Condensation
    Storage TemperatureTst-20+70No Condensation

    Electrical Characteristics


    ItemsSymbolMIN.TYP.MAX.UnitCondition
    Operating VoltageVDD4.85.05.2V-
    Input High VoltageVIH0.8 x VDD-VDDV/CS1,/RES,A0,SI, SCLK,
    Input Low VoltageVILVSS-0.2 x VDDV
    Output High VoltageVOH0.8 x VDD-VDDVSI,SCLK
    Output Low VoltageVOLVSS-0.2 x VDDVSI,SCLK
    Operation CurrentIop-100150μAVDD=5.0
    Sleep CurrentIsl-0.15μATa = 25°C
    Standby ModeIDD-510μATa = 25°C

    LED Backlight Circuit


    ItemsSymbolMIN.TYP.MAX.UnitCondition
    Forword VoltageVf BLA-5.0-VWithout Resister
    Forword CurrentIf BLA-30-mA-

    DESCRIPTION

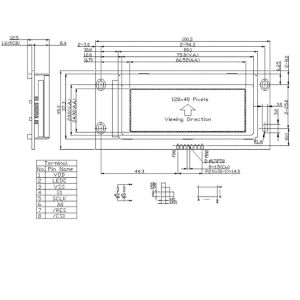

    HTM12848C is a monochrome 128x48 graphic LCD display module which is having the outline size 100.3x45.0 mm and viewing area size of 75.8x29.0 mm. This 128x48 graphic LCD display is built in with ST7565R controller IC or compatible controller. This module can be operating at temperatures from -20℃ to +80℃; its storage temperatures range from -30℃ to +80℃.

    Search Keyword: 128x48 lcd, 128 x 48 lcd, lcd 128 x 48
