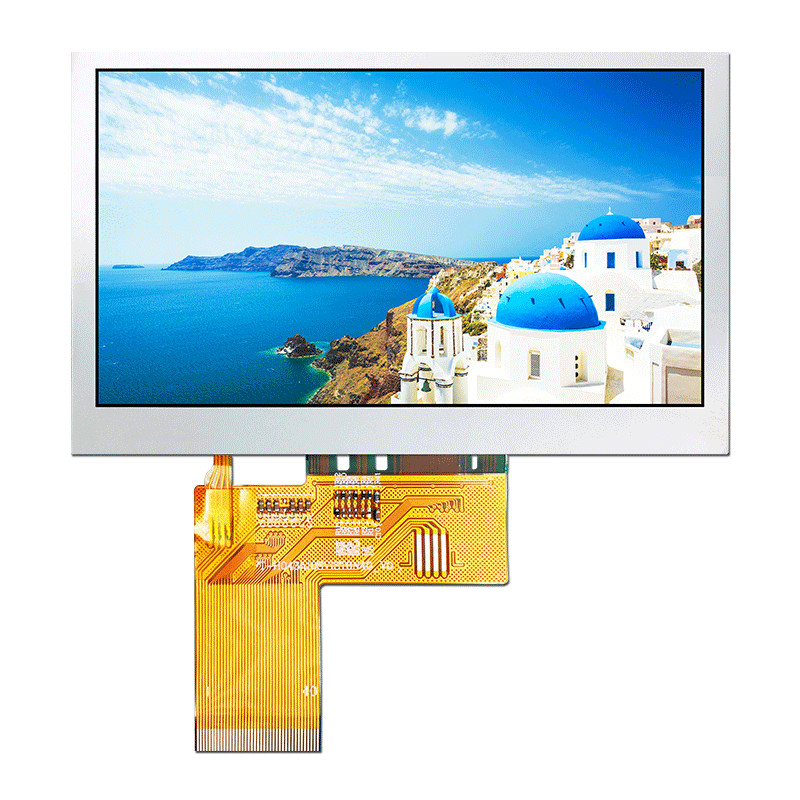

    4.3 inch 800x480 TFT LCD Display Module With RGB Interface

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H043A10SVIST6N40
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    4.3 inch 800x480 TFT LCD Display Module With RGB Interface

    4.3 Inch Sunlight Readable TFT Without Touchscreen/800x480 Pixels/TFT-H043A10SVIST6N40


    Product parameters


    Display Size - 4.3"
    Effective Size (mm) - 95.04X53.85
    Perspective - Full Perspective
    Backlight brightness - 600~1000cd/m2
    Connection method PIN number - 40PIN
    Interface - TTL18bit/24bit
    Working temperature - (-40~80℃)
    Supply Voltage - 3.3V

    General Feature:


    Item

    Standard Value

    Unit

    Display Size4.3Inch
    Number of Pixels800(H)*3(RGB)* 480(V)dots
    Active Area95.04(H)* 53.86(V)mm
    Outline Dimension

    105.50(H) * 67.15(V) * 3.05(D) <TFT>

    mm
    Viewing DirectionFULL O'clock-
    TFT Interface24-bit TTL-
    TFT Driver ICST7262-

    TFT Driver Condition

    VCI=3.3V(Typ)V
    Backlight

    White LED/10 PCS/5 PCS serial 2 ways parallel

    -
    Touch PanelWithout TP With RTP With CTP-
    CTP Driver ICGT911-
    CTP Driver ConditionVDD=3.3V(Typ)V
    Operation Temperature-40 ~ 80

    Storage Temperature-40 ~ 80


    TFT Pin Description


    Pin NO.SymbolDescription
    1LEDKLED Cathode
    2LEDALED Anode
    3GNDGround
    4VCIDigital Power
    5~12DR0~7Red data bus.If not used, please fix this pin at GND.
    13~20DG0~7Green data bus.DG[7:0] are used in 8-bit RGB interface.
    21~28DB0~7Blue data bus.If not used, please fix this pin at GND.
    29GNDGround
    30PCLKPixel clock input pin, default is negative polarity.

    31


    DISP

    Display mode sets DISP=GND:Standby mode; DISP=VCI:Normal display mode
    32HSDHorizontal sync signal, default is negative polarity.
    33VSDVertical sync signal, default is negative polarity.
    34DENData input enable. Display access is enabled when DE is “H”.
    35NCNot Connect
    36GNDGround
    37RTP_XRRTP function pin.If not used, let this pin open.
    38RTP_YDRTP function pin.If not used, let this pin open.
    39RTP_XLRTP function pin.If not used, let this pin open.
    40RTP_YURTP function pin.If not used, let this pin open.

    Search keyword: tft 4.3, tft 4.3", 4.3 tft lcd, 4.3" tft lcd, 4.3 inch tft lcd, tft lcd 4.3, 4.3 tft display, 4.3" tft display, 4.3 inch tft display, tft display 4.3, tft display 4.3"


    TFT-H043A10SVIST6N40.pdf


    TFT-H043A10SVISTKN40.pdf
