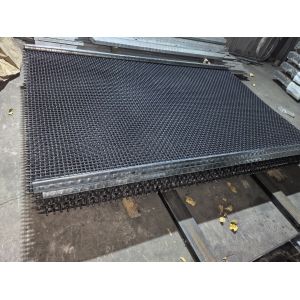

High Carbon Steel Crimped Woven Wire Mesh / Vibrating Screen Mesh
/Stone Crusher Screen Mesh
Heavier woven wire mesh must be pre-crimped. The material remains
stable and rigid after the crimping process. Our pre-crimped woven
wire mesh is available in intercrimp, lock crimp, plain weave and
flat top woven styles, and it is ideal for architectural
applications.
1. Angle: 30 degrees, 45 degrees
2. Crimped wire mesh Shape: v-shaped, u-shaped
3. Hook crimped woven wire mesh Hook type: positive check, positive
check
4 . Woven wire mesh Material: Stainless steel wire,45Mn steel,65Mn
steel,high carbon steel, carbon steel, nickel steel and nonferrous
wire.
5 . Hook crimped woven wire mesh Weaving type: Plain, intermediate,
crimped
6 .Process: Made with pre-crimped wire in the method of locked
crimp, double plain weave, single wave weave, double plain weave,
double crimp, space weave.
7 . Hook woven wire mesh Application: Screening in mine, petroleum,
chemical, building and food industry. Used in machinery parts,
packing, barbecue, hardware products, handicrafts, wire baskets,
food machinery, road and railway, etc. Also used in screening and
grading of solid materials and filtering of liquid and quarry, etc.
- Material: High tensile carbon steel wire, spring steel wire and
stainless steel wire.
- Weaving type: Double crimped, intermediate crimped, flat top
crimped, lock crimped.
- Mesh types: Square mesh, rectangular slotted mesh and extra long
slotted mesh.
- Wire diameter: 1.2mm - 12.7mm.
- Opening size: 1.6mm - 150mm.
Specification
- Material: High tensile spring steel, manganese steel and stainless
steel.
- Wire diameter: 0.71mm - 12.5mm.
- Opening size: 1mm - 100mm.
- Weaving type: Double crimped, intermediate crimped, flat top
crimped, lock crimped.
- Mesh type: Square, rectangular slot, long slot.
- Surface treatment: Black or red color painted.
- Edge preparation: Plain, bent, reinforced shroud, welded shroud,
bolt shroud.

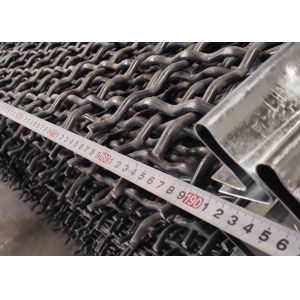

- Hook type: C or U hook for 30° - 180°.
| Chemical sheet of the main material |
|---|
| Steel Grade | Chemical Composition (%) |
| China (GB - YG) | USA (AISI) | C | Mn | Si | S | P | Cr | Cu | Ni |
| # 45 | 1045 | 0.42 - 0.50 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
| # 50 | 1050 | 0.47 - 0.55 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
| # 55 | 1055 | 0.52 - 0.60 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
| # 60 | 1060 | 0.57 - 0.65 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
| # 70 | 1070 | 0.67 - 0.75 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
| 65 Mn | 1566 | 0.62 - 0.70 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30
|
Features:
» The screens are designed to bear heavy loads
» Highly resistant to vibrations and shocks
» These are highly damage resistant
» Coated for long term protection against corrosion
» Durable in quality, these screens have excellent dimensional
tolerance
» Stringently tested for their finishing and strength
» Acclaimed among clients for their excellent abrasion resistance
Applications
- Mining industry
- Coal factory
- Construction industry
- Food processing and meat industry
Used for
- Grid window
- Poultry protection
- Concrete reinforcement
- Building construction
