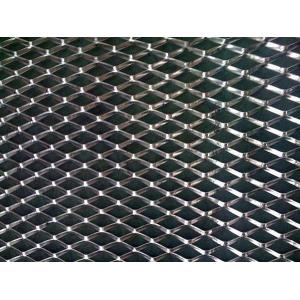

Aperture 20*40mm industrial machinery protective stainless steel
plate net
Material: 302 304 304L 316 316L stainless steel plate.
Specifications:
Plate thickness: d: 0.5-8mm.
Length pitch: TB: 12.5-200mm.
Short pitch TL: 5-80mm.
Net surface size: length (600-4000mm) x width (600-2000mm).
Advantages: mesh uniform, mesh surface flat and high friction
coefficient, high strength is also used in cutting and
manufacturing workpiece. Strong and durable, beautiful appearance,
saving material space, is a good material for environmental
protection and energy saving.
Purpose: Stainless steel plate net can be used for escalator,
channel, mine, locomotive, road, municipal facilities, residential
area, can also be used for filter element, medicine, paper making,
filtration, packaging nets, mechanical facilities protection,
handicraft manufacturing, high-grade sound box net cover,
decoration, basket, basket and road protection, tank car foot net,
Heavy machinery and boilers, oil mines, locomotives, ten thousand
ton ships and other work platforms, escalators, walkways.
SWD (Short Way of the Diamond) is the distance from the middle of
the bond on one side to the middle of the bond on the opposite
side.
LWD (Long Way of the Diamond) is the distance across the largest
dimension of the diamond measured halfway between the diamonds.
SWO (Short Way of the Opening) is the width of the opening of the
shortest side of the diamond. SWO does not include the strand
width, where SWD (Short Way of the Diamond) does.
LWO (Long Way of the Opening) is the length of the opening of the
longest side of the diamond. LWO does not include the strand width,
where LWD (Long Way of the Diamond) does.
StrandExpanded metal is composed of strands and bonds. Strands form the
sides of the expanded metal openings. .
Thickness is the measurement from the top surface to bottom surface of the
expanded metal piece.
Main specifications and models of expanded metal mesh:
| Specifications |
| Material | Low carbon steel, stainless steel, Aluminum Alloy |
| Thickness | 0.5-8mm |
| Strand Width | 0.3-9mm |
| SWD | 2-56mm |
| LWD | 3-150mm |
| Panel Width | 4ft-8ft |
| Panel Length | 4ft-10ft |
| Opening Area | 45%-85% |
| Hole Shapes | Square, Diamond,Triangle, Hexagonal, Round,Scale |
| Surface treatment | Hot dipped Glavanized, Electric galvanized, PVC coated |
| Colors | Could be made by RAL colors |
| Packing | Iron or wooden pallet, wooden case |
FAQ:
Q: Are you a trading company or manufacturer ?
A: We are factory. We are manufacturer of Wire Mesh .
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is
10-15 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay
the cost of freight.
Q: What is your terms of payment ?
A: Payment<=100000USD, 100% in advance.
Payment>=100000USD, 30% T/T in advance ,balance against copy of
B/L.
