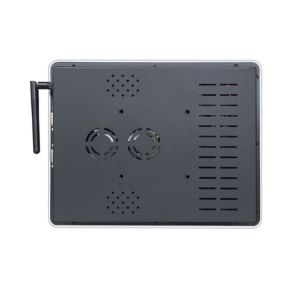

21.5 Inch Industrial Panel PC Embedded Wall Mount Touch Screen

Ask Lasest Price
Brand Name :	Crtly
Certification :	CE,Rosh,HDMI
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability :	500pcs/Month
Delivery Time :	3-25days

Add to Cart

Product Details
Company Profile

21.5 Inch Industrial Panel PC Embedded Wall Mount Touch Screen

21.5 inch Industrial Panel PC Embedded Wall Mount Touch Screen All in one PC

Product Quick Details:

INDUSTRIAL MONITOR
Touch precision
Anti-shock anti-pressure
Dustproof antifouling
High low temperature resistance

Product Features:

CAPACITIVE TOUCH
IP65 waterproof panel and fully closed back cover design can effectively
prevent dust and water from entering the host, prolong the service life,
improve the operation stability of the machine, and easily deal with the
harsh industrial environment

Industrial Panel PC
Different configuration windows: J1900 i3 i5 i7
Linux
Android: RK3288 RK3128 RK3399 S905D3
Capacitive touch
Resistive touch

Product Advantages:

Function customization:
Vertical display
Interface
resolving power
brightness
viewing angle
anti-glare
Automatic brightness

Appearance customization
Material customization
Dimenion
Installation mode
Colors
LOGO
Nameplate

Product Specification:

Type	Open Frame Touch Monitor
LCD Type	12.1 inch Active matrix TFT-LCD
Active Area	245*184(mm)
Best Display Resolution	1024*768 (4:3)
Supported Colors	16.7M Colors
Brightness (typical)	350cd/m²
Response Time (typical)	16ms(TR+TF)
Perspective (Typ.at CR>10))	Horizontal (Left / Right)		80°/80°
	Vertical (Up / Down)		80°/80°
Contrast Ratio (typical)	800:1
Video Import Format	VGA/DVI
Frequency (H/V)	30~80KHz / 60Hz
Power Supply	Type: external power adapter Input voltage: 100-240V AC, 50-60 Hz The output voltage: 12 volts at 1.5 amps max
Environmental	Operating temperature		-20~70°C
	Storage temperature		-30~80°C
	Working humidity		10%~85%RH
	Storage humidity		10%~95%RH
MTBF	50,000 hours
LED Backlight Life (typical)	50,000 hours
Power Consumption	10W Max
OSD Control	Button	POWER,AUTO,+, -,MENU
	Functions	Brightness, contrast, auto-correction, phase, clock, horizontal and vertical position, language, function setting, reset
Touch Screen Type	12.1 inch 10 points capacitive screen

PC Motherboard Parameters
IO Connector	USB: USB2.02, USB3.02
	Internet Port : RJ451 WIFI1
	RS232 Serial Port: COM*6
Touch Screen Type	capacitive touch screen (explosion proof)
Connection	USB
CPU	X86 J1900 (I3, I5,I7,optional)
Response Time (typical)	8ms
ROM	2G
Memory (Hard Disk)	64G M-SATA
Certificate	CCC, CE, RoHs
Warranty	1 year

Application:

Industrial field
CNC operation
Production control
Embedded production vending machine
cabinet locker
workishop
