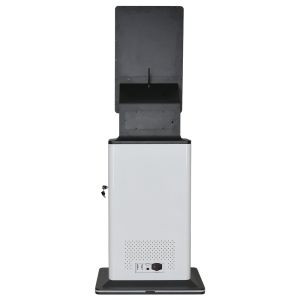

32 inch Self Service Touch Screen Ticket Vending Kiosk With Cash
And Coin Printer
Touch screen self service payment terminal
Overview:
1. 32''cold rolled steel durable ticket vending machine cabinet
3. 32''anti-vandan, dust proof Infrared touch panel
4. Powerful Embedded computer
5. Receipt printing printer
6. Bill recycle system to acceptor and give change to user
7. Coin hopper to give change in coin
Technological Parameters:
| Model | CRT-203 | |
| Screen size | 32 Inch | |
| Screen scale | 16:9 | |
| Product resolution | 1920*1080 | |
| Product brightness | 250 cd/m2 | |
| Product contrast | 1000:1 | |
| Response time | 5ms | |
| Touch Model | Capacitive 10 points | |
| Built-in Speaker | 2 | |
| Outer Frame color | Black | |
| Power | Type: external power adapter Input voltage: 100-240 V AC, 50-60 Hz | |
| Temper glass | Yes | |
| Dimension | 555mm(L)*355mm(W)*1425mm(H) | |
| Display size | 509.1mm*286.4mm | |
| Working environment | Operating temperature. -10～50°C ；Storage temperature -20～60°C |
| Working humidity 10%～90% ；Storage humidity 10%～90% |
| Wireless scanner | YES |
Product Features:
1. Receipt printing printer: default receipt thermal printer, which
could print 58~80mm width&1.0mm thickness receipt. It is with
auto cutter. Pls kindly noticed that we only provide printer
itself, what content to be printed in the ticket is based on
payment software.
2. Banknotes Recycle system: this system makes the machine not only
accept payment by cash in bill, but also can give change in bill to
users. In the same way, this recycle can accept cash and give
change forpayment terminal, while what to do with the received
The terminal will provide relevant drivers and SDKs.
Application:
Bus station, Train station, shopping hall, cinema, park, amusement
park...
