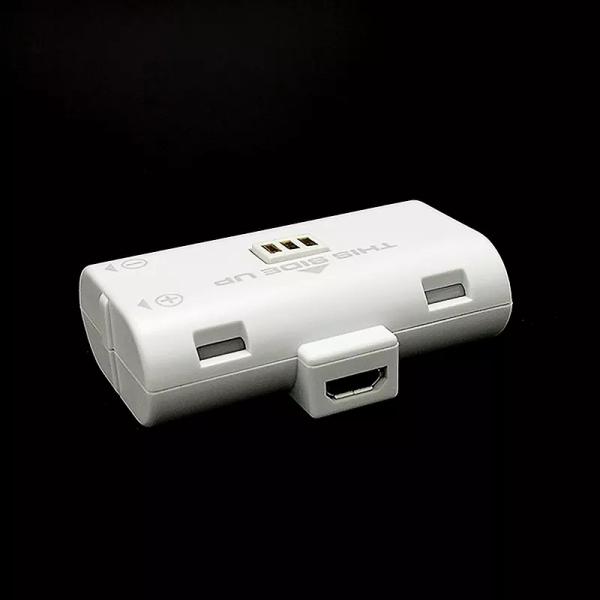

Nintendo Game Console and controller batteries replacement nimh
2.4V 1200mAh
1. Low self discharge and ready to use type nimh with custom
dimension
2. stable voltage output keep fast charge and high discharge long
working hours
3. Coatible with many Nintendo game controller or swith battery
4. Safety battery struction and maintenance free cyle life more
than 500 cycles
5. Fast delviery support the overseas air sea and courier delivery
Specification of Nintendo switch battery 2.4V 1200mah new battery
replacement 2.4V 1200mah nimh
Chargeable | Yes |
Application | Game controller battery, game battery pack |
Brand Name | MaxPower |
Model Number | 1.2V 1200mAh N-type NI-MH battery |
Place of Origin | China |
Weight | 40.0g |
Size | TBA |
Charging voltage | 3V |
Discharge termination voltage | 2.0V |
Operating teerature range | Charging: 0~45℃, discharge: -10~60℃ |
Storage teerature range | Storage (1 year) - 20 ℃ to + 25 ℃, storage (6 months) - 20 ℃ and +
35 ℃, storage (3 months) - 20 ℃ to +~45℃ |
Standard discharge | 0.2C to 2.0V |
Quick charge | 0.5C charge for 2.4 hours |
Fast discharge | Discharge from 1.0C to 2.0V |
Internal resistance of finished product | ≤ 300mΩ |
Battery External | ABS and PC |
Standards | IEC61951, IEC62133&a; GBT22084 |
Features | High security, high reliability, Mirco interface charging |
A.Safety-- gas hole: advanced secondary explosion-proof design
B. Nical plated steel shell and positive cap: irove the charging efficiency, anti-corrosion
C. Enviromental friendly material: All materials passed the ROHS certification.
Sale delivery: 3 -4days.
Mass production period: 10-15days
2. Discharge characteristic
3. Safety test
Over discharge: 0.1C charge for 48hrs No conspicuous deformation and/or leakage.
Charge reserve: Standard charge Storage: 28 days Standard discharge (0.2C)
≥180min
Humidity: Standard charged, stand for 10 days at 33±3℃ and 80±5% of
relative humidity No leakage
External Short Circuit: After standard charge, short-circuit the cell at 20 ℃ ± 5 ℃ until
the cell teerature returns to ambient teerature.(cross section of
the wire or connector should bemore than 0.75mm2) No fire and no
explosion
Vibration Resistance: Charge of voltage should be under 0.08V/pack, change of iedance
should be under20milli-ohm/cell.
Drop Test: △V<0.02V/cell △Ri<5%/cell Charge at 0.1C for 16hrs,and then
leave for 24hrs,check battery before / after drop
Thickness of wooden board: 30mm
Direction is not specified
Test for 3 times
IEC Cycle Life Test: ≥500 cycle IEC61951-2(2003)7.4.1.1
4. Ni-Mh battery we have the size of AAA, AA, A, SC,C,D,F.
Capacity from 250mAh to 15000mAh.AAA size other models:
| Size | Model No. | Nominal Voltage (V) | Nominal Capacity(mAh) | Dimension with Tube | Weight Approx.(g) |
| Diameter(mm) | Height(mm) |
| AAA | H-2/3AAA300 | 1.2 | 300 | 10.5 | 29.0 | 8.5 |
| H-2/3AAA350 | 1.2 | 350 | 10.5 | 29.0 | 9 |
| H-AAA650A | 1.2 | 650 | 10.5 | 44.5 | 12 |
| H-AAA700A | 1.2 | 700 | 10.5 | 44.5 | 12.5 |
| H-AAA900 | 1.2 | 900 | 10.5 | 44.5 | 14 |
| H-AAA1000 | 1.2 | 1000 | 10.5 | 44.5 | 16
|
5. nimh Game Console battery replacement :
6. Q&a;A
Q: How is the quality garantee?
A: We keep 1 year garantee for our battery cellss. As the faulty
allowance is less than 0.2%. For more we will give
replacement in the next order.
Q: How long will be the delivery date?
A: Normally one month.If have cells stock,15 days will be ready.
Q: How to start the cooperation?
A: You can take our sale and confirm the quality and packing
details. Then start to order from small order.
How to order this nimh console battery ?
You could contact our sales manager Lucy directly as below :
Lucy whatsApp: 0086-13714669620
Email: Lucy@maxpowersz.com
BatteryLucyXu@gmail.com
Mobile : 0086-13714669620
Skype: XuXuLucy114
