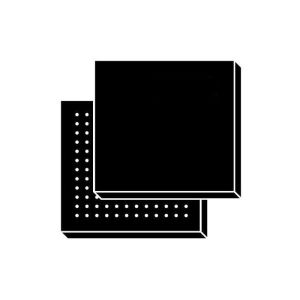

Integrated Circuit Chip STM32H747AGI6 32-Bit Dual-Core 240MHz Microcontroller IC

    Buy cheap Integrated Circuit Chip STM32H747AGI6 32-Bit Dual-Core 240MHz Microcontroller IC from wholesalers

    Buy cheap Integrated Circuit Chip STM32H747AGI6 32-Bit Dual-Core 240MHz Microcontroller IC from wholesalers
    • Buy cheap Integrated Circuit Chip STM32H747AGI6 32-Bit Dual-Core 240MHz Microcontroller IC from wholesalers

    Integrated Circuit Chip STM32H747AGI6 32-Bit Dual-Core 240MHz Microcontroller IC

    Ask Lasest Price
    Brand Name : Original Factory
    Model Number : STM32H747AGI6
    Certification : Lead free / RoHS Compliant
    Price : Contact for Sample
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Integrated Circuit Chip STM32H747AGI6 32-Bit Dual-Core 240MHz Microcontroller IC

    Integrated Circuit Chip STM32H747AGI6 32-Bit Dual-Core 240MHz Microcontroller IC


    Product Description Of STM32H747AGI6

    STM32H747AGI6 devices are based on the high-performance Arm® Cortex®-M7 and Cortex®-M4 32-bit RISC cores. The Cortex®-M7 core operates at up to 480 MHz and the Cortex®-M4 core at up to 240 MHz. Both cores feature a floating point unit (FPU) which supports Arm® single- and double-precision (Cortex®-M7 core) operations and conversions (IEEE 754 compliant), including a full set of DSP instructions and a memory protection unit (MPU) to enhance application security.


    Specification Of STM32H747AGI6

    Product Status

    Active

    Core Processor

    ARM® Cortex®-M4/M7

    Core Size

    32-Bit Dual-Core

    Speed

    240MHz, 480MHz

    Connectivity

    CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG

    Peripherals

    Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT

    Number of I/O

    112

    Program Memory Size

    1MB (1M x 8)

    Program Memory Type

    FLASH

    RAM Size

    1M x 8

    Voltage - Supply (Vcc/Vdd)

    1.62V ~ 3.6V

    Data Converters

    A/D 28x16b; D/A 2x12b

    Oscillator Type

    Internal

    Operating Temperature

    -40°C ~ 85°C (TA)


    Features of STM32H747AGI6

    • Dual core
    • 32-bit Arm® Cortex®-M7 core with double-precision FPU and L1 cache: 16 Kbytes of data and 16 Kbytes of instruction cache; frequency up to 480 MHz, MPU, 1027 DMIPS/ 2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
    • 32-bit Arm® 32-bit Cortex®-M4 core with FPU, Adaptive real-time accelerator (ART Accelerator™) for internal Flash memory and external memories, frequency up to 240 MHz, MPU, 300 DMIPS/1.25 DMIPS /MHz (Dhrystone 2.1), and DSP instructions

    FAQ
    Q. Are your products original?
    A: Yes, all products are original, new original import is our purpose.
    Q:Which Certificates do you have?
    A:We are ISO 9001:2015 Certified Company and member of ERAI.
    Q:Can you support small quantity order or sample?Is the sample free?
    A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
    Q:How to ship my order? Is it safe?
    A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
    Q:What about the lead time?
    A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
