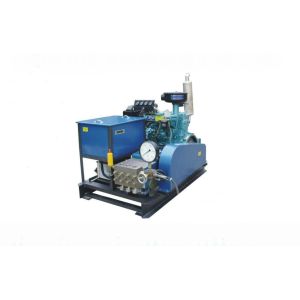

Steel Tubes Hydraulic Pipeline Pressure Test Pump 500bar Hydro Tester

7200psi Pipeline Pressure Test Pump For Steel Tubes Pressure Testing Hydraulic Testing Equipment

Details:

1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.
5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.

7200psi Pipeline Pressure Test Pump For Steel Tubes Pressure Testing Hydraulic Testing Equipment

Characteristics as below:

Product Description

The high pressure pumps have two kinds of the usage,one is for the high pressure cleaning purpose,and another is for pressure testing purpose.Hydro Test Pump is an equipment which is used to test the pressure of objects,the machine with high pressure water jet by means of a power device. It can jet high pressure water jet into the objects like the pipes,valves ,let the objects full of high pressure water jet.to see if the objects water leakage or not when the hydro test pump reach a pressure datas.this pump install a stop checking valve,ti can stop the high pressure water jet comes back into the pump.so the pressure can show on the pressure gauge.the pressure test purpose can reach.

Features

• This machine is made up of mainly by high pressure reciprocating pump, power units and cleaning accessories etc.




  1) High pressure reciprocating pump: the pump is horizontal triplex plunger pump, driven by electric motor, made up of by power end and fluid end.



• Power end: it is made up of by belt pulley(couplings), crankshaft and connecting rod etc. Electric motor or diesel engine,or gasoline engine driven the crankshaft and reduces its speed, and crank link mechanism will change whirling movement to straight line reciprocating movement.
• Fluid end: it is made up of by plunger set, high pressure cylinder, pump body and water input and output valves etc. High pressure cylinder is fixed on crankcase while connecting rod drives plunger to do reciprocating movements, which make volume in cylinder do cyclical change. When plunger is in-sucking stroke, the volume in cylinder increases, water output valve closes, local vacuum is formed. Working media enter into high pressure cylinder by going against water input valve under high atmospheric pressure. When plunger is in discharging stroke, water input valve closes, and plunger transfer the working media to pump body by water output valve, to pressure regulating valve, finally to high pressure spray gun by high pressure hose.

The purpose of a water pump is to move water not containing suspended solids or particulates. Water pumps handle ground water, potable and salt water. High Pressure water pumps are widely used in water jetting applications.

Water jetting equipment using high pressure water pumps is used to direct high pressure water streams against material to clean or cut it. The streams of water released by water jetting and water blasting equipment is normally 5,000 PSI to 40,000 PSI. In an efficient water jetting system, pressure is vital consideration. Typically, hardened deposits respond better with high pressure water pumps, and softer materials are best removed with lower flows.

Water jetting and water blasting equipment is used for cleaning or demolition of products made of metal, wood, concrete, stone, plastic, glass or other building materials.

Specific components within a water jetting system include abrasive injectors, pressure generators, blast cabinets or booths, water guns, and water tanks. Abrasive injectors can convert a water jetting system into an abrasive blaster. The injection or metering system controls the amount of abrasive pushed into the air stream. In large systems, the delivery system and injection system may be separate components. Pressure generators increase the pressure of the carrier fluid (water or air). Plunger-type intensifier pumps are commonly used to generate high pressure water for water jet cutting, wet or water abrasive blasting and non-abrasive pressure washing or rinsing.

Applications

The pumps are widely used in oil refinery pipes cleaning, heat exchangers pipes cleaning, ship hull cleaing,oil paitings removing,rust removing,etc.
Meanwhile, our pumps also can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing, and so on.

Applications:
it is widely used in oil pipelines pressure testing,valve pressure testing,tubes pressure testing......


FAQ

7200psi Pipeline Pressure Test Pump For Steel Tubes Pressure Testing Hydraulic Testing Equipment

Q1. What about the lead time?
A: 20 working days for mass production.

Q2. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc.

Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by sea shipping.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.

Chengdu Sincere Da Machinery Co.Ltd,a company with 40 years professional manufacturing factory,which located in Chengdu China.a place where is famous for the pandas.

from year 1982  set up,we are making the triplex plungers pump all the time.now we have a 20000sq. meters factory,and we can make the high pressure pump pressure from 100bar to 6000bar,water flow from 10L/min to 400L/min. the pumps are widely used in oil refinery pipes cleaning,heat exchangers pipes cleaing,ship hull cleaing,oil paitings removing,rust removing,and so on......

meanwhile our pumps can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing.and so on.....

As a factory which is over 200 peope,we pay attention to the quality control,we make the pumps working safety,stable,easy to fix at customers hands.we can supply the good services to customers all the time,once customers find the machines have problem,we can supply the way to solve immediately.

so many foreign customers always give highly comments of our factory.
