    LSHT Torqmotor TG0475 Series 5/16-18 UNC Manifold Wheel Flange 1 1/4”Tapered Shaft

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : TG0475
    Certification : CE
    Price : Contact the seller to get a quote
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 10000 pieces per year
    Delivery Time : 55 work days
    • Product Details
    • Company Profile

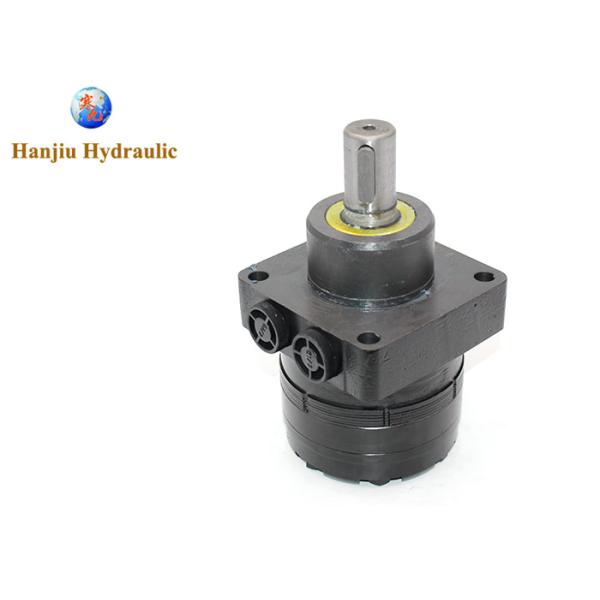

    LSHT Torqmotor TG0475 Series 5/16-18 UNC Manifold Wheel Flange 1 1/4”Tapered Shaft

    LSHT Torqmotors TG0475 Series,5/16-18 UNC Manifold wheel flange,1 1/4”Tapered shaft

    HANJIU supply the LSHT Torqmotors BMER Series motors matching Parker TG series motors, the same function.


    Details specifications


    Series:TG
    Shaft:1 1/4”Tapered shaft,31.75mm
    Rotation:Reverse Timed
    Manifold
    Displacement (cm3/rev):0475
    Mounting:Wheel, Standard
    Geometric Displacement:475cm3/rev (29.1 in3/rev)
    Maximum Speed:237 rev/min
    Maximum Oil Flow (continuous / intermittent):76 lpm (20 gpm) / 114 lpm (30 gpm)
    Max. Differential Pressure (continuous / intermittent):138 bar (2000 PSID) / 207 bar (3000 PSID)
    Maximum Supply Pressure:300 bar (4350 PSIG)
    Maximum Torque - Continuous / Intermittent:887 Nm (7853 lb-in) / 1372Nm (12145 lb-in)
    Maximum Performance:28 KW (38HP)
    Minimum Starting Torque - Continuous / Intermittent:740 Nm (6549 lb-in) / 1120 Nm (9909 lb-in)




    PARKER Hydraulic Motors

    TB
    TE
    TF
    TG
    TJ



    Generally speaking, hydraulic motors can be divided into gear type, vane type, plunger type and other types according to their structure types. According to its rated speed, it can be divided into two categories: high speed and low speed. The rated speed higher than 500r/min belongs to the high-speed hydraulic motor, and the rated speed lower than 500r/min belongs to the low-speed hydraulic motor. General factories produce few types of motors due to their limited manufacturing capacity. Too well-known brands will have higher prices due to product positioning and company positioning, so it is difficult to choose when purchasing. In this , I think Hanjiu Technology is the best choice because it is the most cost-effective. We are a company specializing in the manufacture of hydraulic products and have been deeply involved in the hydraulic industry for more than ten years. Since its official establishment in Hebei, China in 2010, the company has been adhering to the original principle of customer first. We have an advanced professional technical team working hard. In China, the hydraulic industry has always been in a leading position and is committed to providing the most satisfactory products for every customer. Stable performance, strong power and high-speed operation are not only the most important characteristics of each hydraulic motor, we believe that high efficiency and long life are also the characteristics of each customer's product requirements. Therefore, we choose a high-pressure sealing oil seal, which can withstand high back pressure and large torque; low starting pressure and forward and reverse directions, which can not only adjust the speed, control the torque, but also ensure smooth and powerful rotation. Made of HRC 56~62 high-strength steel, quenched at 850 degrees Celsius to create a high-hardness shaft. So far, our hydraulic motors are not only sold well at home and abroad, but also have a good reputation for cost-effective and genuine products. We also have long-term cooperation in Europe, South America, North America, Africa and other regions.


    if any needs for hydraulic motors, Hanjiu technology is your best choice!
