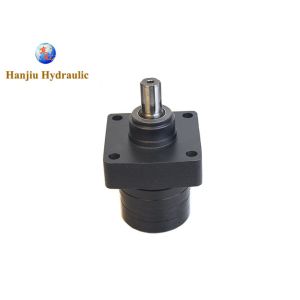

    Hydraulic Wheel Motor 65 Cm3/Rev 1"6B Spline Shaft Wheel Mounting Flange

    Hydraulic Wheel Motor,65 cm3/rev,1"6B spline shaft , wheel mounting flange,Parker TE series


    Quick review:

    Drop in equivalent to TE0065US1100AAAA Parker low speed, high torque hydraulic motor. 4.0 cu. in. / rev displacement. Maximum pressure 140bar continuous, maximum pressure 190bar intermittent. Torque 125N.m. continuous, torque 165N.m. intermittent. Maximum speed 667 RPM continuous. Flow rate 45l/min,1" spline 6B shaft . 7/8-14 SAE ports. 4bolts wheel mounting flange. 1 year warranty.


    LSHT Torqmotors
    Manufacturer: Hanjiu


    This medium duty motor has higher pressure ratings than the TB motor, for applications requiring higher torque. Robust
    roller bearings withstand higher side loads and are suitable for chain and sprocket shaft connections. It uses high pressure
    shaft seals, robust roller bearings and high flow shaft seal cooling.


    Details specifications


    Series:TE
    Shaft:1" spline shaft
    Rotation:Standard
    Displacement (cm3/rev):0065
    Mounting:4 Bolts wheel mounting flange
    Ports:7/8-14 SAE
    Geometric Displacement:65 cm3/rev (4.0 in3/rev)
    Maximum Speed:842 rev/min
    Maximum Oil Flow (continuous / intermittent):45 lpm (12 gpm) / 57 lpm (15 gpm)
    Max. Differential Pressure (continuous / intermittent):140 bar (2030 PSID) / 190 bar (2750 PSID)
    Maximum Supply Pressure:200 bar (2900 PSID)
    Maximum Torque - Continuous / Intermittent:390 Nm (3452 lb in) / 528 Nm (4673 lb in)
    Maximum Performance:17.4 KW (23.4 HP)
    Minimum Starting Torque - Continuous / Intermittent:312 Nm (2762 lb in) / 411 Nm (3637 lb in)
    Maximum Side Load at Key:6650 N (1500 lb)

    The motor is available in 15 displacements from 36 cc/rev to 392 cc/rev: TE0036 | TE0045 | TE0050 | TE0065 | TE0080 | TE0100 | TE0130 | TE0165 | TE0195 | TE0230 | TE0260 | TE0295 | TE0330 | TE0365 | TE0390



    More Parker type Torque motors:

    TB, TC, TJ, TE, TF, TG, TK



    other types :


    DANFOSS Hydraulic Motors
    OMM
    OMP
    OMR
    OMS
    OMH
    OMT
    OMV
    M+S Hydraulic Motors
    MM/MLHM
    MP/MLHP
    MR/MLHR
    MH/MLHH
    MS/MLHS
    MT/MLHT
    MV/MLHV
    EATON Hydraulic Motors
    J (129-)
    H (101-)
    S (103-)
    T (158-)
    W (162-)
    2000 (104-, 105-, 106-, 193-)
    4000 (109-, 110-, 111-)
    6000 (112-, 113-, 114-)
    10,000 (119-, 120-, 121-)


    Whether you are a dealer or an individual customer, if you have a demand for hydraulic motor, orbit motor,torquemotor, low speed high torque motor,Hanjiu technology is your best choice and business partner!
