Eaton / Char Lynn 104-1215-006 DISC VALVE MOTOR 2 Bolt SAE B Flange

    Buy cheap Eaton / Char Lynn 104-1215-006 DISC VALVE MOTOR 2 Bolt SAE B Flange from wholesalers

    Buy cheap Eaton / Char Lynn 104-1215-006 DISC VALVE MOTOR 2 Bolt SAE B Flange from wholesalers
    • Buy cheap Eaton / Char Lynn 104-1215-006 DISC VALVE MOTOR 2 Bolt SAE B Flange from wholesalers
    • Buy cheap Eaton / Char Lynn 104-1215-006 DISC VALVE MOTOR 2 Bolt SAE B Flange from wholesalers
    • Buy cheap Eaton / Char Lynn 104-1215-006 DISC VALVE MOTOR 2 Bolt SAE B Flange from wholesalers
    • Buy cheap Eaton / Char Lynn 104-1215-006 DISC VALVE MOTOR 2 Bolt SAE B Flange from wholesalers

    Eaton / Char Lynn 104-1215-006 DISC VALVE MOTOR 2 Bolt SAE B Flange

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : 104-1215-006
    Certification : CE
    Price : Start from 95 usd
    Payment Terms : L/C, T/T, Western Union, Western Union
    Supply Ability : 300000 sets per year
    Delivery Time : 35 - 45 work days
    • Product Details
    • Company Profile

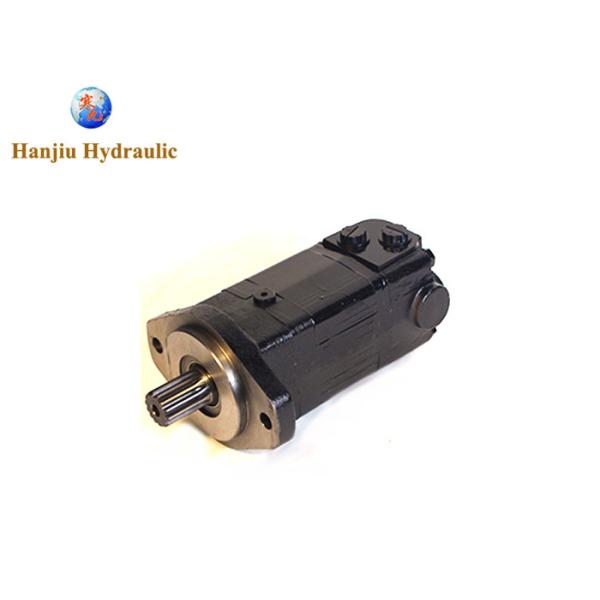

    Eaton / Char Lynn 104-1215-006 DISC VALVE MOTOR 2 Bolt SAE B Flange



    Eaton / Char Lynn 104-1215-006 DISC VALVE MOTOR,2 Bolt SAE B Flange,1 1/4 Inch Involute SAE C Splined


    Specification:
    104-1215-006
    M02240AF04AA0100010000000AAAAF
    Disc Motor
    Geroler
    Disc Valve


    DISPLACEMENT400CC
    SERIES
    2000 Series
    PORT LOCATIONSide Port, Staggered
    SHAFT TYPE1 1/4 Inch
    Involute
    SAE C
    Splined
    DRAIN7/16 -20 UNF-2B SAE O-ring Drain Port
    MAXIMUM SPEED @ CONTINUOUS FLOW191 rpm @ 20 gal/min
    FLOW RATE20 gal/min
    RPM [MAX]287 rpm
    DUTYStandard-Duty
    GEROTER/GEROLER OPTIONSStandard
    MOUNTING TYPESTANDARD, 2 BOLT; 101.6 [4.00] PILOT DIA. 14.35 [.565] DIA. HOLES ON 146.0 [5.75] DIA. BOLT CIRCLE. SAE B
    SPLINES1 1/4 Inch Involute SAE C Splined
    PORT SIZESAE-10, 7/8-14 UNF
    MOTOR TYPEDisc Valve
    MOUNT TYPE2 Bolt



    TYPES WE SUPPLY :


    104-1001-006104-1002-006104-1003-006104-1004-006104-1005-006
    104-1006-006104-1007-006104-1143-006104-1023-006104-1024-006
    104-1025-006104-1026-006104-1027-006104-1028-006104-1228-006
    104-1420-006104-1030-006104-1031-006104-1032-006104-1033-006
    104-1034-006104-1035-006104-1229-006104-1422-006104-1038-006
    104-1039-006104-1040-006104-1041-006104-1042-006104-1043-006
    104-1044-006104-1062-006104-1063-006104-1064-006104-1065-006
    104-1066-006104-1067-006104-1068-006104-1421-006104-1088-006
    104-1089-006104-1090-006104-1091-006104-1092-006104-1093-006
    104-1094-006104-1423-006104-1194-006104-1195-006104-1196-006
    104-1197-006104-1198-006104-1199-006104-1201-006104-1202-006
    104-1203-006104-1204-006104-1205-006104-1206-006104-1207-006
    104-1209-006104-1210-006104-1211-006104-1212-006104-1213-006
    104-1214-006104-1215-006104-1217-006104-1218-006104-1219-006
    104-1220-006104-1376-006104-1377-006104-1378-006104-1379-006
    104-1380-006104-1381-006104-1382-006104-1383-006104-1384-006
    104-1385-006104-1386-006104-1387-006104-1388-006104-1389-006
    104-1390-006104-1391-006



    Applications

    • Swing motor
    • Brush Cutters & mowers
    • Harvesting equipment
    • Directional boring
    • Turf equipment
    • Skid Steer loaders
    • Fairway mowers
    • Harvesters
    • Mowing
    • Snow removal
    • Sprayers
    • Trencher
    • Wood products
    • Grinders and mixers
    • Forestry equipment
    • Irrigation reels


















    Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China

    we have the most completely range of them, matching Danfoss/M+S/Charlynn/White/Parker... with fast leading time, excellent price

    and best service. our aim is to make your hydraulic system is easy and affordable!
