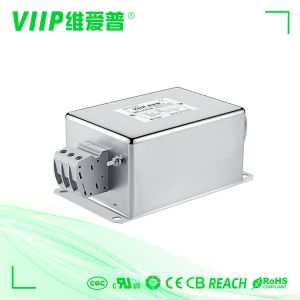

    3 Phase AC Power Line Noise Filter For Variable Frequency Drive

    Ask Lasest Price
    Brand Name : VIIP WeiAiPu
    Model Number : VIP3-31A-80
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 2000 pcs within 10-15 days
    MOQ : 5 PCS
    Delivery Time : 5-10 Days for samples
    • Product Details
    • Company Profile

    3 Phase AC Power Line Noise Filter For Variable Frequency Drive

    3 Phase Emc Filter Power Supply Single Phase AC Filter 3A EMI Filter


    Description:


    1, Rated currents from 0.5 to 2000A

    2, High attenuation performance up to 30 MHz

    3, Voltage rating 440VAC for worldwide acceptance

    4, Approvals: CE, ROHS

    5, solder lug ,stud or teminal block connection are available

    Specification:


    Item3 Phase EMI Filter
    Model3 Phase EMI Filter - VIP3 Series
    Original of countryChina
    Package TypeSurface Mount
    Nominal working Frequency150K-30MHZ
    Insertion Loss60~90dB
    Input Impedance50Ω
    Rated Voltage380V/440V
    Current100A
    MOQ1 PCS
    Temperature25 / 085 / 21
    Operating Frequency50/60HZ
    Line to Line2250VDC
    Line to Ground2700VDC
    110VAC/60HZ 1.4mA
    MOQ5pcs
    PortShenzhen
    Leading Time3~15 weekday for Low Pass EMI Filter

    Specifications:


    Tabulates

    Part No.Rated Current [A]250VAC/50Hz @ 20C
    Leakage Current [mA]
    Physical DimensionsElectrical SchematicsTerminalsWeight [g]
    VIP3-31A-066A<2.0mAFig 1Fig 1M4380
    VIP3-31A-1010A<2.0mAFig 1Fig 1M4510
    VIP3-31A-2020A<2.0mAFig 1Fig 1M4600
    VIP3-31A-3030A<2.0mAFig 1Fig 1M6640
    VIP3-31A-4040A<2.0mAFig 1Fig 1M6640
    VIP3-31A-5050A<3.0mAFig 2Fig 1M61000
    VIP3-31A-8080A<7.0mAFig 2Fig 1M83000
    VIP3-31A-100100A<7.0mAFig 2Fig 1M83000
    VIP3-31A-150150A<7.0mAFig 2Fig 1M103200
    VIP3-31A-200200A<7.0mAFig 2Fig 1M103200

    Electrical schematic:


    Mechanical Dimension(Unit: mm)


    Applications:

    such as print machine

    packing machine

    textile equipment

    industry air conditioner

    UPS

    medical equipment
