| Brand Name : | OEM |
| Model Number : | C120 A320 E10 A116 |
| Price : | USD+62+KG |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 1000+Kg+per month |
| Delivery Time : | 10 days |

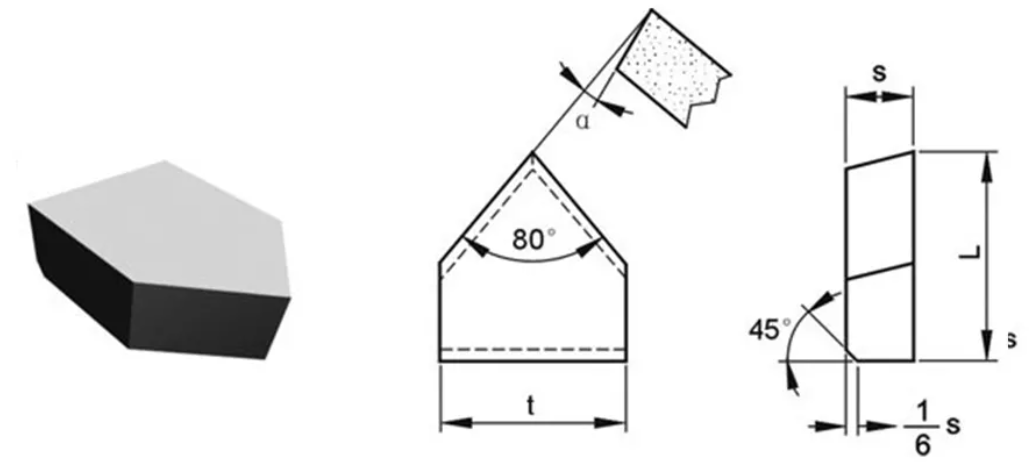

Brazed Tips Tungsten Carbide YG6, Type E

| Type | Dimension (mm) | |||
| L | t | s | ɑ | |
| E4 | 10.0 | 4.0 | 2.5 | / |
| E5 | 12.0 | 5.0 | 3.0 | / |
| E6 | 14.0 | 6.0 | 3.5 | / |
| E8 | 16.0 | 8.0 | 4.0 | 9° |
| E10 | 18.0 | 10.0 | 5.0 | 9° |
| E12 | 20.0 | 12.0 | 6.0 | 9° |
| E16 | 22.0 | 16.0 | 7.0 | 9° |
| E20 | 25.0 | 20.0 | 8.0 | 9° |
| E25 | 28.0 | 25.0 | 9.0 | 9° |
| E32 | 32.0 | 32.0 | 10.0 | 9° |
Why Choose Tungsten Carbide Brazed Tips
Cement carbide can be used to cut superhard metals, stainless
steel, cast iron, hardened steel, etc. For special applications,
specific materials can be adapted to satisfy customers'
requirements. ZGJRDCC can supply various types of tungsten carbide
brazed tips including A type, B type, C type, D type, E type, K
type, etc.



| Type | Dimension(mm) | Grade/ grams | |||||||
| Right | Left | L | T | S | e | YG6 | YW | YT5 | YT14 |
| A310 | / | 10 | 6 | 3 | 0.8 | 2.4 | 2.3 | 2 | 1.8 |
| A312 | A312z | 12 | 7 | 4 | 0.8 | 6.8 | 6.6 | 5.7 | 5.2 |
| A315 | A315z | 15 | 9 | 6 | 0.8 | 10.7 | 10.5 | 8.9 | 8.2 |
| A320 | A320z | 20 | 11 | 7 | 0.8 | 12.3 | 12 | 10.5 | 9.8 |
| A325 | A325z | 25 | 14 | 8 | 0.8 | 21.3 | 20.8 | 17.5 | 16.3 |
| A330 | A330z | 30 | 16 | 9.5 | 0.8 | 24.7 | 24.3 | 21 | 19.7 |
| Type | L | T | S | r/e | YG6 | YW | YT5 | YT14 | |
| C110 | 10 | 4 | 3 | 0.5/0.8 | 1.5 | 1.5 | 1.3 | 1.2 | |
| C116 | 16 | 6 | 4 | 0.5/0.8 | 4.8 | 4.7 | 4 | 3.7 | |
| C120 | 20 | 8 | 5 | 0.5/0.8 | 10.1 | 9.9 | 8.2 | 7.7 | |
| C122 | 22 | 10 | 6 | 0.5/0.8 | 15.6 | 15.3 | 13.7 | 12.1 | |
| C125 | 25 | 12 | 7 | 0.5/0.8 | 25 | 24.6 | 21.3 | 19.1 | |
Use:
For external turning, boring and groove tools.
For facing tools and external circle turning tools.
For external circle turning and face milling tools.
For profile turning tools and dovetail groove planing and milling
tools.
For concave profile turning tools and wheel edge turning tools.
For convex profile turning toolsFor making twist drills and
straight groove drills.

|
