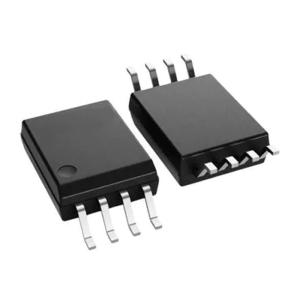

AMC23C12QDWVRQ1 Analog Comparators with Adjustable Threshold and Latch Function

    Buy cheap AMC23C12QDWVRQ1 Analog Comparators with Adjustable Threshold and Latch Function from wholesalers

    Buy cheap AMC23C12QDWVRQ1 Analog Comparators with Adjustable Threshold and Latch Function from wholesalers
    • Buy cheap AMC23C12QDWVRQ1 Analog Comparators with Adjustable Threshold and Latch Function from wholesalers

    AMC23C12QDWVRQ1 Analog Comparators with Adjustable Threshold and Latch Function

    Ask Lasest Price
    Brand Name : Original Factory
    Model Number : AMC23C12QDWVRQ1
    Certification : Lead free / RoHS Compliant
    Price : Contact for Sample
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    AMC23C12QDWVRQ1 Analog Comparators with Adjustable Threshold and Latch Function

    AMC23C12QDWVRQ1 Analog Comparators with Adjustable Threshold and Latch Function


    Product Description Of AMC23C12QDWVRQ1

    The AMC23C12QDWVRQ1 is an isolated window comparator with a short response time. The open-drain output is separated from the input circuitry by an isolation barrier that is highly resistant to magnetic interference. This barrier is certified to provide reinforced galvanic isolation of up to 5 kVRMS according to VDE 0884-17 and UL1577, and supports a working voltage of up to 1 kVPK.
    The AMC23C12QDWVRQ1 is available in an 8-pin, widebody SOIC package and is specified over the full automotive temperature range of –40°C to +125°C.


    Specification Of AMC23C12QDWVRQ1

    1 Channel

    Open Drain

    General Purpose

    3 V

    27 V

    4.3 mA

    25 nA

    - 40 C

    + 125 C


    Features Of AMC23C12QDWVRQ1

    • AEC-Q100 qualified for automotive applications:
    • Temperature grade 1: –40°C to +125°C, TA
    • Wide high-side supply range: 3 V to 25 V
    • Low-side supply range: 2.7 V to 5.5 V
    • Adjustable threshold:
    • Window-comparator mode: ±20 mV to ±300 mV
    • Positive-comparator mode: 600 mV to 2.7 V
    • Reference for threshold adjustment: 100 μA, ±2%
    • Trip threshold error: ±1% (max) at 250 mV
    • Open-drain output with optional latch mode
    • Propagation delay: 280 ns (typ)
    • High CMTI: 55 V/ns (min)

    Applications Of AMC23C12QDWVRQ1

    Overcurrent or overvoltage detection in:
    HEV/EV charging piles
    HEV/EV onboard chargers (OBC)
    HEV/EV DC/DC converters
    HEV/EV traction inverters


    Typical Application Of AMC23C12QDWVRQ1


    Pin Configuration and Functions Of AMC23C12QDWVRQ1
