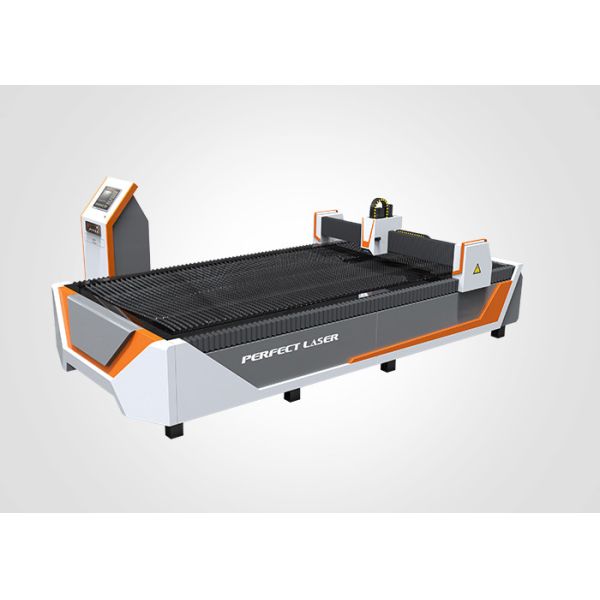

    Plasma Metal Cutting Machine For SS Aluminum Copper Titanium Nickel

    Ask Lasest Price
    Brand Name : Perfect Laser
    Model Number : PE-CUT-A3
    Certification : CE/ISO/TUV/FDA
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, D/A
    Supply Ability : 800 sets per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Plasma Metal Cutting Machine For SS Aluminum Copper Titanium Nickel

    Metals Stainless Steel Aluminum Copper Titanium Nickel Plasma Metal Cutting Machine


    (Model:PE-CUT-A3)


    ★ Product Introduction:


    Pefect laser plasma metal cutting machine adopts high quality fiber laser, which can cut most metal plates. The integrated design of plasma metal cutting machine tool accessories and the movable gantry machine structure ensure long-term stability and safety.Imported servo system and CNC system of the plasma metal cutting machine have good compatibility, strong stability, easy maintenance, and excellent processing capabilities.



    ★ Product Features:


    1.Automatic calculation of cutting and kerf compensation, reducing processing data production time and ensuring accurate processing graphics size.

    2.Automatically optimize processing procedures, reduce processing time and improve processing efficiency.

    3.The LCD screen is clear at a glance and easy to operate.

    4.Automatic culling and automatic height adjustment system, which can automatically adjust the height on uneven steel plates to ensure the same distance between the cutting torch and the steel plate, thereby ensuring the cutting quality.

    5.Support multiple graphics data formats such as AI, DXF, PLT, etc.



    ★ Application:


    This plasma metal cutting machine is widely applied in special-shaped carbon steel, manganese steel, stainless steel, non-ferrous metals (stainless steel, aluminum, copper, titanium, nickel) and other metal materials of large, medium and small plates.


    ★ Technical Parameters:


    Machine NamePlasma Metal Cutting Machine
    ModelPE-CUT-A3
    Effective Cutting WidthTrack Gauge-1500
    Effective Cutting LengthGauge Length-3000
    Plasma Cutting Thickness1-25mm
    Cutting Torch Lifting Stroke60mm
    Machine Running Speed50-45000mm/min
    Velocity Error≤±5%
    Automatic Height Adjustment Accuracy≤±1.0mm
    Weight550KG
    Vertical Line Accuracy±0.2mm/10m
    Linear Repetition Accuracy±0.4mm/10m
    InstallationAccuracy of Rail

    Rail Side Straightness:0.5mm/10000mm

    The parallel degree between the rail and the horizontal

    plane of the guide rail:±0.5mm/10000mm

    Positioning Precision0.1mm

    A)Equipment positioning accuracy and repeatability: conform to JB/T5102-1999 standard

    B)Cutting dimension accuracy, section quality: conform to JB/T10045.3-1999 standard

    Straightness0.2mm
    Roundness0.2mm
    Diagonal Difference0.3mm
    Repeated PositioningAccuracy0.5mm
    Machine MarkingAccuracy≤0.5mm

    Cutting SurfaceQuality(Roughnes)

    (σ=25)

    RZ(um)=70+1.2a

    Visual Measurement: roughness12.5


    ★ Packaging & Delivery:


    1. Prompt deliver at the very day.

    2. Well-trained and disciplined packing team.

    3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

    4. Sophisticated and professional logistic agent.


    ★Competitive Advantages:


    1. 100% custom pass guaranteed.

    2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.

    3. Flexible and Untraceable payment terms.

    4. Good after-sale service.

    5. We offer high quality products at competitive price in quick delivery.
