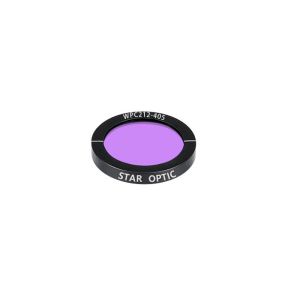

20ns Optical Waveplate Cemented Half Wave Plate Retardation 1310nm

    Buy cheap 20ns Optical Waveplate Cemented Half Wave Plate Retardation 1310nm from wholesalers

    Buy cheap 20ns Optical Waveplate Cemented Half Wave Plate Retardation 1310nm from wholesalers
    • Buy cheap 20ns Optical Waveplate Cemented Half Wave Plate Retardation 1310nm from wholesalers

    20ns Optical Waveplate Cemented Half Wave Plate Retardation 1310nm

    Ask Lasest Price
    Brand Name : STAR OPTIC
    Model Number : WPC
    Certification : RoHS, ISO9001
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 50000pcs/Month
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    20ns Optical Waveplate Cemented Half Wave Plate Retardation 1310nm

    Cemented Zero Order λ/2 Half Wave Plate, High Retardance

    Overview:

    Cemented zero order wave plate is constructed by two quartz plates with their fast axis crossed. The two plates are cemented by UV epoxy. The difference in thickness between the two plates determines the retardance. Zero order waveplate features better performance than multiple order waveplate, as zero order waveplate has lower sensitivity to temperature and wavelength changes.


    Main Features of Cemented Zero Order Wave Plate:

    • Low sensitivity to temperature changes
    • Wide wavelength bandwidth
    • Both sides AR coated
    • Large sizes available

    General Specifications of Cemented Zero Order λ/2 Half Wave Plate:

    MaterialCrystalline Quartz
    Dimension Tolerance+0.0/-0.2mm
    Surface Quality20/10 scratch and dig
    Clear Aperture>90% central area
    Wavefront Distortion<λ/8@632.8nm
    Parallelism<1 arc seconds
    Retardation Tolerance<λ/300
    Standard Wave

    half-wave(λ/2)

    CoatingBoth sides AR coated, R<0.25% per face @ central wavelength
    Damage Threshold>500mJ/cm2, 20ns, 20Hz @1064nm

    Standard Products of Cemented Zero Order λ/2 Half Wave Plate:

    Part NumberTypeDiameter (mm)

    Retardation

    (λ)

    Wavelength

    (nm)

    Clear Aperture (mm)
    WPC212-405Cemented12.7λ/240511.5
    WPC225-405Cemented25.4λ/240522.9
    WPC238-405Cemented38.1λ/240535
    WPC212-633Cemented12.7λ/263311.5
    WPC225-633Cemented25.4λ/263322.9
    WPC238-633Cemented38.1λ/263335
    WPC212-780Cemented12.7λ/278011.5
    WPC225-780Cemented25.4λ/278022.9
    WPC238-780Cemented38.1λ/278035
    WPC212-795Cemented12.7λ/279511.5
    WPC225-795Cemented25.4λ/279522.9
    WPC238-795Cemented38.1λ/279535
    WPC212-852Cemented12.7λ/285211.5
    WPC225-852Cemented25.4λ/285222.9
    WPC238-852Cemented38.1λ/285235
    WPC212-894Cemented12.7λ/289411.5
    WPC225-894Cemented25.4λ/289422.9
    WPC238-894Cemented38.1λ/289435
    WPC212-1310Cemented12.7λ/2131011.5
    WPC225-1310Cemented25.4λ/2131022.9
    WPC238-1310Cemented38.1λ/2131035
    WPC212-1550Cemented12.7λ/2155011.5
    WPC225-1550Cemented25.4λ/2155022.9
    WPC238-1550Cemented38.1λ/2155035

    Retardance Graph of Cemented Zero Order Wave Plate:


    405nm Cemented Zero Order Waveplate

    633nm Cemented Zero Order Waveplate

    780nm Cemented Zero Order Waveplate

    795nm Cemented Zero Order Waveplate

    852nm Cemented Zero Order Waveplate

    894nm Cemented Zero Order Waveplate

    1310nm Cemented Zero Order Waveplate

    1550nm Cemented Zero Order Waveplate
