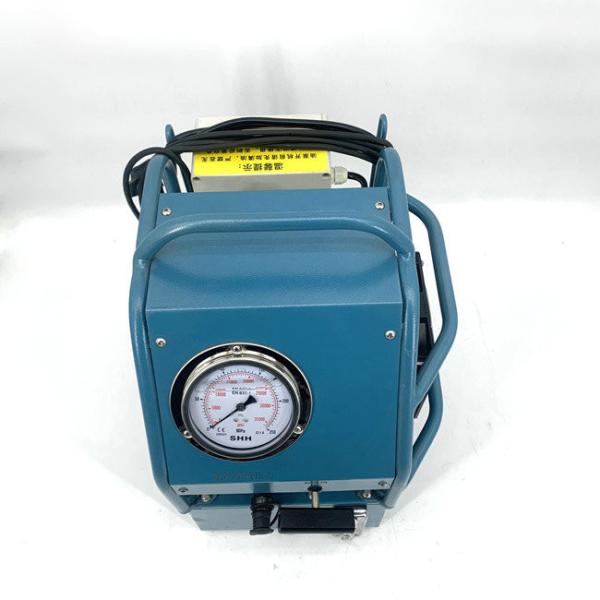

Hydraulic High Pressure Pump is suitable for marine diesel engine
maintenance
Product Brief
1, Pneumatic hydraulic pump is an ultra-high pressure pneumatic
pump, suitable for 2200Bar operation.
2, Can be connected to all kinds of high-pressure oil cylinders.
3, The equipment is compact in structure, light in weight, steel
protective shell, light in weight, durable, and easy to handle.
4, Output pressure 0-2200Bar can adjust the required pressure
arbitrarily.
5, External pointer pressure gauge, easy to read.
6, Use stainless steel anti-vibration pressure gauge.
Technical parameter
Output pressure(Bar) | MAX,2200 At8.0 Bar Air Input |
Fuel tank capacity (L) | 4.5 |
Pump speed | APPROX.550 CYCLES/MIN.AT8.0 BAR AIR INPUT |
MAX,FLOW AT NO PRESSURE | APPROX. 0.45 LITRES/MIN.AT 8.0 BAR AIR INPUT |
Weight(Kg) | 24 |
Dimensions(mm) | 340*320*380 |
AIR ACCESS PORT | ISO228/1-G1/2 |
HIGH-VOLTAGE OUTPUT | ISO228/1-G1/4 |
Company products
Fuel valve testing devices, pneumatic high-pressure pumps, manual
high-pressure pumps, electric high-pressure pumps, hydraulic
cylinders, hydraulic jacks and various hydraulic tools and
pneumatic tools.
These products are widely used in important fields such as
shipbuilding, marine engineering, aviation, metallurgical
equipment, mining, water conservancy engineering, wind power
generation, nuclear power engineering and so on.
Among them, fuel valve testing devices, pneumatic high-pressure
pumps, manual high-pressure pumps, and electric high-pressure pumps
have sufficient inventory and can be shipped at any time.
Hydraulic cylinders, hydraulic jacks and various hydraulic tools
are customized products that need to be designed and manufactured
according to user requirements. Usually the shipping cycle of these
products is about 30 days.
We are a complete hydraulic system supplier. If you need advice on
bolt connections, please contact us for free technical consultation
We can advise you competently and objectively. We will find a
suitable technical solution to bring you economic benefits.
