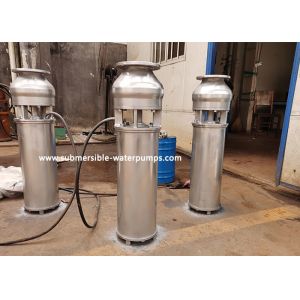

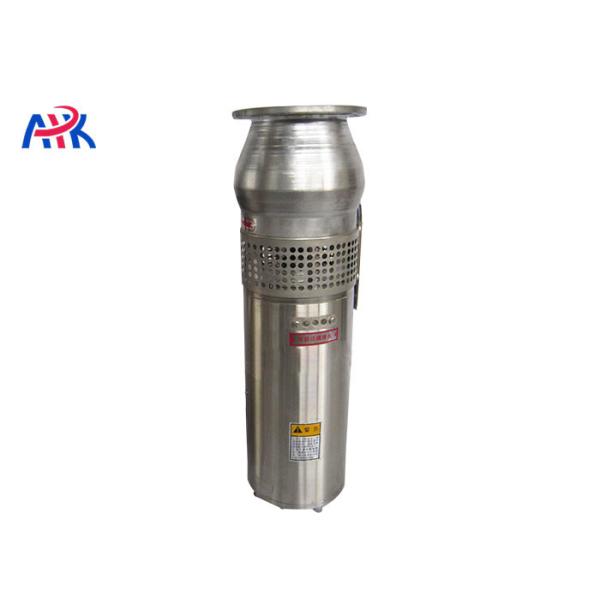

Low head 25m landscape fountain water pump for all-purpose
Application range of Low head 25m landscape fountain water pump for
all-purpose:
The special pump for fountain is applicable to all kinds of garden
waterscape projects, chemical plants, salt farms, marine sewage and
the unique natural environment of mining, and can also be used to
transport slightly corrosive liquids.
Service conditions of Low head 25m landscape fountain water pump
for all-purpose+:
1. When the rated lift of the special pump for landscape fountains
is less than 10 meters, the allowable depth of submergence into the
water shall not exceed 10 meters.
2. When the rated lift of the electric pump exceeds 10m, the
allowable depth of submergence into the water shall not exceed 40m.
3. The material temperature shall not exceed+40 ℃.
4. The sand content in the water or the volume ratio of solid
particles containing insoluble water shall not exceed 0.1%.
5. The particle size distribution shall not exceed 0.2mm.
6. Cold water under normal temperature, such as river water, river
or slightly corrosive liquid.
7. The switching power supply shall be three-phase 50Hz, with a
rated current of 380V. The working voltage of its power supply
system must be within 342~420V.
8. The electric pump shall be applied in the application field
around the rated lift.
9. The electric pump shall be equipped with relative starting
protection device and grounding device.
Storage conditions of Low head 25m landscape fountain water pump
for all-purpose:
When the electric pump is not used for a long time, the water in
the motor shall be drained in time, the surface shall be wiped
clean, coated with anti-rust oil, and placed in a clean, dry place
without chemical corrosion. After the inner chamber of the motor is
filled with clean water, it is strictly prohibited to put it under
the environmental conditions with a temperature of 0 ℃ or below, or
it must be completely drained to prevent the motor from freezing
and cracking.
Parameters of Low head 25m landscape fountain water pump for
all-purpose:
| Model | Capacity (m3/h) | Head (m) | Power (kw) |
| QSP25-25-3 | 25 | 25 | 3 |
| QSP45-25-5.5 | 45 | 25 | 5.5 |
| QSP65-25-7.5 | 65 | 25 | 7.5 |
| QSP45-25-5.5 | 45 | 25 | 5.5 |
Our company provides various types of QS(P) fountain submersible
pump with the following parameters:
| Model | Capacity (m3/h) | Head (m) | Power (kw) |
| QSP15-26-2.2 | 15 | 26 | 2.2 |
| QSP20-20-2.2 | 20 | 20 | 2.2 |
| QSP25-17-2.2 | 25 | 17 | 2.2 |
| QSP65-7-2.2 | 65 | 7 | 2.2 |
| QSP100-5-2.2 | 100 | 5 | 2.2 |
| QSP40-16-3 | 40 | 16 | 3 |
| QSP40-18-3 | 40 | 18 | 3 |
| QSP45-16-3 | 45 | 16 | 3 |
| QSP25-25-3 | 25 | 25 | 3 |
| QSP32-20-3 | 32 | 20 | 3 |
| QSP50-13-3 | 50 | 13 | 3 |
| QSP65-10-3 | 65 | 10 | 3 |
| QSP22-28-3 | 22 | 28 | 3 |
| QSP50-13-3 | 50 | 13 | 3 |
| QSP100-7-3 | 100 | 7 | 3 |
| QSP15-34/2-3 | 15 | 34 | 3 |
| QSP20-30/2-3 | 20 | 30 | 3 |
| QSP40-21-4 | 40 | 21 | 4 |
| QSP65-13-4 | 65 | 13 | 4 |
| QSP80-12-4 | 80 | 12 | 4 |
| QSP100-9-4 | 100 | 9 | 4 |
| QSP25-34/2-4 | 25 | 34 | 4 |
| QSP24-34/2-4 | 24 | 34 | 4 |
| QSP15-52/3-4 | 15 | 52 | 4 |
| QSP20-40/2-4 | 20 | 40 | 4 |
| QSP20-36/2-4 | 20 | 36 | 4 |
| QSP30-26/2-4 | 30 | 26 | 4 |
| QSP40-28-5.5 | 40 | 28 | 5.5 |
| QSP45-25-5.5 | 45 | 25 | 5.5 |
| QSP60-20-5.5 | 60 | 20 | 5.5 |
| QSP65-18-5.5 | 65 | 18 | 5.5 |
| QSP40-30/2-5.5 | 40 | 30 | 5.5 |
| QSP30-36/2-5.5 | 30 | 36 | 5.5 |
| QSP30-38/2-5.5 | 30 | 38 | 5.5 |
| QSP30-40/2-5.5 | 30 | 40 | 5.5 |
| QSP20-50/3-5.5 | 20 | 50 | 5.5 |
| QSP15-65/4-5.5 | 15 | 65 | 5.5 |
| QSP120-10-5.5 | 120 | 10 | 5.5 |
| QSP100-12-5.5 | 100 | 12 | 5.5 |
| QSP220-5-5.5 | 220 | 5 | 5.5 |
| QSP65-25-7.5 | 65 | 25 | 7.5 |
| QSP80-24-7.5 | 80 | 24 | 7.5 |
| QSP100-15-7.5 | 100 | 15 | 7.5 |
| QSP150-10-7.5 | 150 | 10 | 7.5 |
| QSP40-40/2-7.5 | 40 | 40 | 7.5 |
| QSP80-22/2-7.5 | 80 | 22 | 7.5 |
| QSP30-50/3-7.5 | 30 | 50 | 7.5 |
| QSP30-54/3-7.5 | 30 | 54 | 7.5 |
| QSP25-56/3-7.5 | 25 | 56 | 7.5 |
| QSP50-36/3-7.5 | 50 | 36 | 7.5 |
| QSP20-75/3-7.5 | 20 | 75 | 7.5 |
| QSP25-60/3-7.5 | 25 | 60 | 7.5 |
| QSP24-34/2-4 | 24 | 34 | 4 |
| QSP15-52/3-4 | 15 | 52 | 4 |
| QSP20-40/2-4 | 20 | 40 | 4 |
| QSP20-36/2-4 | 20 | 36 | 4 |
| QSP30-26/2-4 | 30 | 26 | 4 |
| QSP40-28-5.5 | 40 | 28 | 5.5 |
| QSP45-25-5.5 | 45 | 25 | 5.5 |
| QSP60-20-5.5 | 60 | 20 | 5.5 |
| QSP65-18-5.5 | 65 | 18 | 5.5 |
| QSP40-30/2-5.5 | 40 | 30 | 5.5 |
| QSP30-36/2-5.5 | 30 | 36 | 5.5 |
| QSP30-38/2-5.5 | 30 | 38 | 5.5 |
| QSP30-40/2-5.5 | 30 | 40 | 5.5 |
| QSP20-50/3-5.5 | 20 | 50 | 5.5 |
| QSP15-65/4-5.5 | 15 | 65 | 5.5 |
| QSP120-10-5.5 | 120 | 10 | 5.5 |
| QSP100-12-5.5 | 100 | 12 | 5.5 |
| QSP220-5-5.5 | 220 | 5 | 5.5 |
The fountain pumps produced by our company have been recognized
internationally, and each pump has passed the quality inspection.
In addition, our pump products have also obtained ISO 9001, TUV,
BV, CE, 3C certification. We are a factory specializing in the
production of water pumps for more than 30 years. We have a
one-to-one service team to help you quickly and high-quality model
selection. Our email is enquiry02@apkpump.com, our Whatsapp is +86
17537187726. Thanks to contact us.
