Low Voltage ф0.5mm-10mm Cable Extrusion Machine

    Buy cheap Low Voltage ф0.5mm-10mm Cable Extrusion Machine from wholesalers

    Buy cheap Low Voltage ф0.5mm-10mm Cable Extrusion Machine from wholesalers
    • Buy cheap Low Voltage ф0.5mm-10mm Cable Extrusion Machine from wholesalers

    Low Voltage ф0.5mm-10mm Cable Extrusion Machine

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : 60+35
    Certification :
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 200 set/year
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    Low Voltage ф0.5mm-10mm Cable Extrusion Machine

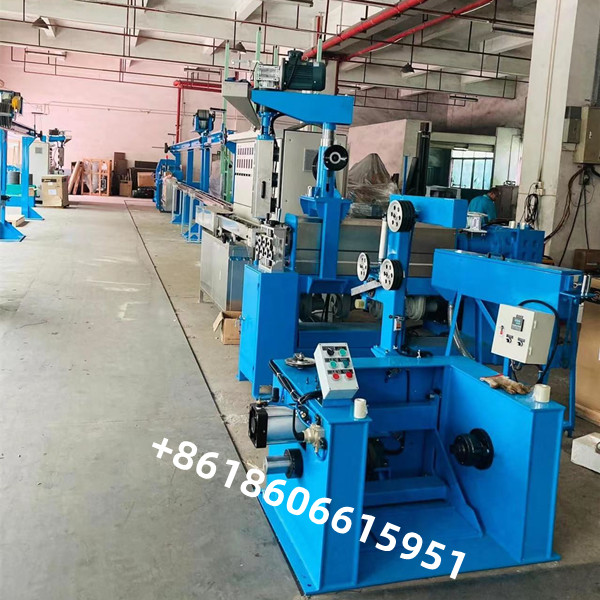

    Low Voltage Cable Extruder Machine Ф0.5mm-10mm cable extrusion line


    Double Shaft Cable Extruder Machine / Silent Copper Extrusion Machine


    Cable Extruder Machine Quick detail :


    Cable Extruder Machine Applied to PE, PP, SR-PVC, PVC and other plastic material for the automobile wire,insulated jacketed.


    Cable Extruder Machine Specification:


    This production line contains:lut barrel pay off machine,straighten,main machine,injection machine,control case,tank,double wheel capstan,accumulator,double shaft take up and other equipments.The chosen equipments:copper wire preheater,printer,OD measuring instrument,spark tester and PLC control.


    Equipment type60+3570+3580+35-1
    Pay off type500-630active pay off or lut barrel pay off
    Screw dia(mm)607080
    screw ratio26:126:126:1
    extrusion output(kg/h)120170240
    main machine power(kw)223045
    wire specification(mm)Φ0.8-5.0Φ1.0-6.0Φ1.5-8
    cooling deviceDouble layer model UDouble layer model Udouble layer model U
    max wire accumulator length(mm)300300300
    hauling power(kw)3.75.55.5
    outlet speed(m/min)0-8000-8000-1000
    take up type1246 automatic coiling machine,The plum blossom falls barrel machine,shaft type

    Quality Low Voltage ф0.5mm-10mm Cable Extrusion Machine for sale
