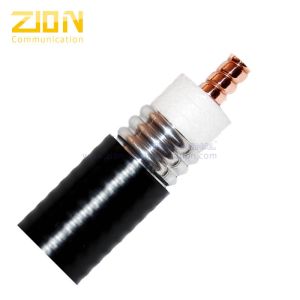

1-5/8" Smooth Copper Tube with Annular Corrugated Aluminum Tube RF Corrugated 50 ohm coaxial cable

Add to Cart

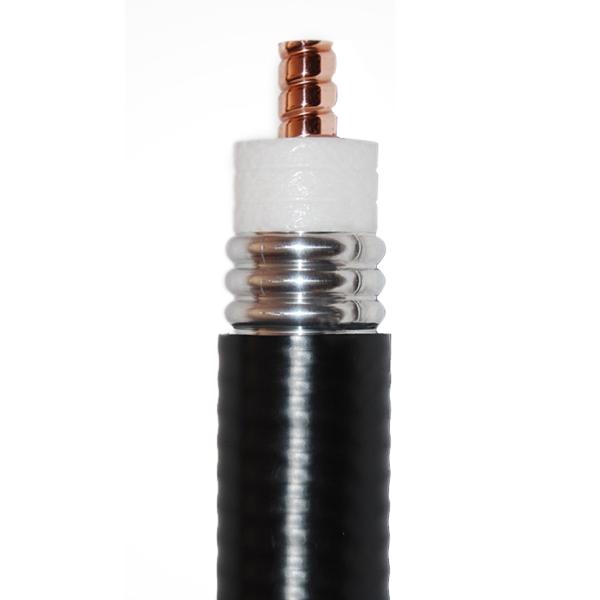

1-5/8" AL RF Corrugated 50 ohm coaxial cable NO.7101115

Construction Parameters:
Inner Conductor	17.30±0.15mm Corrugated Copper Tube
Insulation	42.50±0.30mm Foamed PE
Outer Conductor	46.50±0.20mm Annular Corrugated Aluminum Tube
Jacket	49.50±0.30mm PE, Black
Jacket Thickness	＞1.30mm
Application

Electrical Characteristics:
Capacitance	75 pF/m
Impedance	50 Ω
Velocity of Propagation	0.88
Peak Power Rating	310 KW
Peak Voltage	3.1 KV
Insulation Resistantce	>10000 MΩ.km
Insulation Voltage	15 KV
Inner Conductor DC Resistance	1.50 Ω/km
Outer Conductor DC Resistance	0.52 Ω/km
VSWR
800MHz-1000MHz	1.15
1700MHz-2200MHz	1.2
2200MHz-2500MHz	1.2


Mechanical and Envrionmental Properties:
Bending Radius (Single Bend)	300 mm
Bending Radius (Repeated Bend)	510 mm
Operating Temp Range	-55 to +85 ℃
Cable Diamensions	49.50±0.30mm

Attenuation(20℃):
Frequency (MHZ)	Attenuation (dB/100m)	Average Power(KW)
200	1.05	11.80
450	1.59	7.46
800	2.29	5.33
900	2.39	4.97
1000	2.58	4.69
1500	3.22	4.97
1800	3.73	3.27
2000	3.97	3.05
2200	4.27	2.87
2500	4.62	2.37

Order Informations:
Marking	HELLOSIGNAL 1 5/8" AL RF COAXIAL CABLE ××× M
Package	Inquired Length on Wooden Drum
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM
