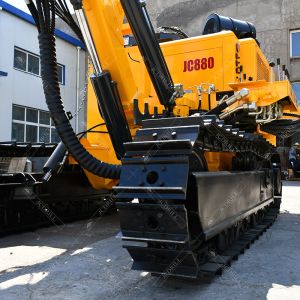

    74kw Cummins Engine Dth Underground Drill Rig Rock Blasting Machine

    Ask Lasest Price
    Brand Name : JCDRILL
    Model Number : JC880
    Certification : ISO,CE
    Price : Negotation
    Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram
    Supply Ability : 2000Set/year
    Delivery Time : In stock
    • Product Details
    • Company Profile

    74kw Cummins Engine Dth Underground Drill Rig Rock Blasting Machine

    JC880 40m Drilling Capacity DTH Drilling Machine


    JCDRILL rock drilling rig is suitable to be used in anchor in road, railway, power station, civil engineering and building. JC880 is excellent in performance, high in working efficiency, easy for operation and it can efficiently keep the operators from danger.


    Specifiction

    1Rock HardnessF=6-20
    2Hole Diametermm90-165
    3Hole Depthm40
    4Drilling Rod Diametermm60,76,89
    5Rotation TorqueNm4500
    6Rotation Speedrpm0-100
    7Max. Feed forceKN30
    8Max. Lifting forceKN30
    9Max. Feed SpeedM/min15
    10Max. Lifting SpeedM/min15
    11Max Swing of Boom°45° left / 45° right
    12Max Dump of Boom°up60 down20
    13Max Swing of Guide°30(L) / 91(R)
    14Max Dump of Guide°180
    25Guide Extensionmm1200
    15Feed Strokem3
    16Manufacturer CUMMINS
    17Electrical System24Volt
    18Compressor Pressure RequiredM³/minΦ≤115 11.3m2/min(1.4 Mpa)
    Φ≤140 13m2/min(1.4 Mpa)
    Φ≤165 17m2/min(1.4 Mpa)
    Φ≤165 21m2/min(2.4 Mpa)
    19Max. Travel SpeedKm/h2
    20Gradeability°24
    21Net Weightkg6100
    22Shipping Lengthmm6900
    23Shipping Widthmm2200
    24Shipping Heightmm2200

    Packing& Delivery

    Service

    12'' High Pressure DTH hammer for fundation,construction and borehole drilling ,305-445mm hole range
