    J1900 NANO Itx Mini Desktop Mainboard RJ45 Com Console 2 LAN HDMI DP Display

    Ask Lasest Price
    Brand Name : VEGASHINE / OEM
    Model Number : NANO-P1312HD-BT-J1900
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000 units per Month
    Delivery Time : 3 to 10 work days
    • Product Details
    • Company Profile

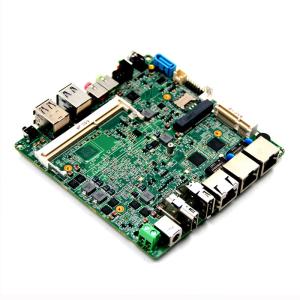

    J1900 NANO Itx Mini Desktop Mainboard RJ45 Com Console 2 LAN HDMI DP Display

    Quad core J1900 NANO itx mainboard RJ45 com console 2 LAN HDMI DP display industrial motherboard for mini desktop pc


    Key features


    Integrated Intel® Celeron® Bay Trail J1900 quad core 4 threads 2.00~2.42GHz Processor

    Singel channel DDR3L 1066/1333MHz up to 8G

    Support HDMI+DP sync or asynchronous display

    1*DP

    1*HDMI

    1*RJ45 port RS-232

    2*Gigabit LAN

    3*USB2.0

    1*USB3.0

    1*IR infrared receiving port

    1* standard SATAII

    1* M-SATA Scoket

    Onboard EMMC 32/64/128G(Optional)

    Single-input DC power supply, DC12-19V

    size: 120 * 120 mm


    Specifications


    ProcessorCPU

    Integrated Intel® Celeron® Bay Trail J1900 quad core 4 threads 2.00~2.42GHz Processor


    CPU packageBGA
    ChipsetSupport Baytrail-I/D/M series Processor
    BIOSEFI BIOS
    MemoryTechnology frameworkSingel channel DDR3L 1066/1333MHz
    CapacityMax support 8GB Ram
    SocketDDR3 SODIMM 204 Socket
    VideoGraphic controllerIntel HD Graphics
    DPDP support Resolution maximum 2560*1600
    HDMIHDMI support Resolution maximum 1920x1080
    Dual displayHDMI+DP sync or asynchronous display
    I/O panelPorts1*DP 1*HDMI 1*USB3.0 3*USB2.0 2*LAN 1*Quick Power On button with indicator 1*Restart button 1*DC 1*COM口 1*LINE OUT 1*MIC 1*Power
    indicator 1*Hard disk indicator
    NetworkController2*Intel I211AT high performance Gigabit Ethernet Port,RJ45 ports
    HARDWARE MONITORINGWatchdog timer0-255sec, sample code optional
    CoolerAluminum fanless heat sink
    Input/Output InterfaceUSB

    3*USB2.0

    1*USB3.0 Max support +5V/1A

    Serial Ports1*RJ45 port RS-232
    Infrared1*IR infrared receiving port
    Audio1*LINE OUT 1*MIC
    SPDIF1*3pin
    Extended busMini-PCle1*Mini-PCIe slot ,support PCIe singal equipment
    StorageSATA1* Standard SATAII connector, Maximum transmission rate 3Gb/s
    M-SATA1*Mini-PCIe M-SATA Scoket,support SANDISK Protocol,Maximum transmission rate 3Gb/s.
    EMMCSupport 32/64/128G(Optional)
    Power SupplyPower TypeSingle-input DC power supply,DC12-19V,+/-5%
    Working environmentWorking temperature-20℃ ~ +60℃
    Storage temperature-40℃ ~ +85℃
    Working humidity0% ~ 90%(non-condensing)
    Storage humidity0% ~ 90%(non-condensing)
    System support Windows7 Windows8.1 Windows10 Linux When using EMMC to install the system J1900, J1800 CPU only supports Windows8.1 Windows10,
    E3845 CPU supports Windows8.1 Windows10 Linux
    DimensionSize120 x 120 mm
    Weight0.5KG
