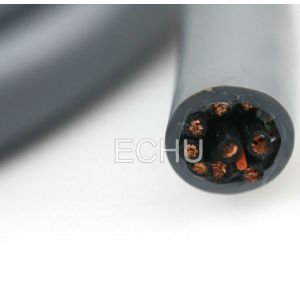

    Round Elevator and Escalator Control Cable

    Ask Lasest Price
    Brand Name : ECHU
    Certification : CCC
    Model Number : EKF203-20400
    Price : USD0.152-USD0.639/m
    Delivery Time : 7 to 10 days after receiving payment
    Payment Terms : T/T, Western Union
    Supply Ability : 100000km/week
    • Product Details
    • Company Profile

    Round Elevator and Escalator Control Cable

    Round Cable for Elevator Shaft

    Applications:

    The cable is suitable for dry rooms and various kind of electric installation in industrial use environment. The cable as flexible control and connecting cable (cross section area is 0.5 sq mm or above).

    Suitable for places of machine tool manufacturing, complete equipment installation, power station, heating and air-conditions.

    For special flexibility, it is also used for the installation and fixation of elevator well hole.

    Properties:
    Good mechanical properties, electric insulating properties and chemical stability, service safety.
    Based on EKF20300, EKF20400 series increase cross section area (2.0) with yellow and green earth wire. It is also used in elevator series.

    Standard: CNCA-01C-002: 2001/A1

    Structure:
    Conductor: Copper acc. To VDE0295 CLASS 5
    Insulation: Special PVC
    Inner liner: PP tape or non-woven fabric wrapping
    Sheath: 70 degree PVC, black (RAL9005) or grey (RAL7001)

    Technical data:
    Minimum bending radius: Fixed installation: 6x outer diameter
    Flexing installation: 15xouter diameter
    Working temperature: Flexing installation: -10 degree to + 70 degree
    Fixed Installation: -30 degree to +70 degree
    Test Voltage: 2000V
    Work voltage: 300/500V
