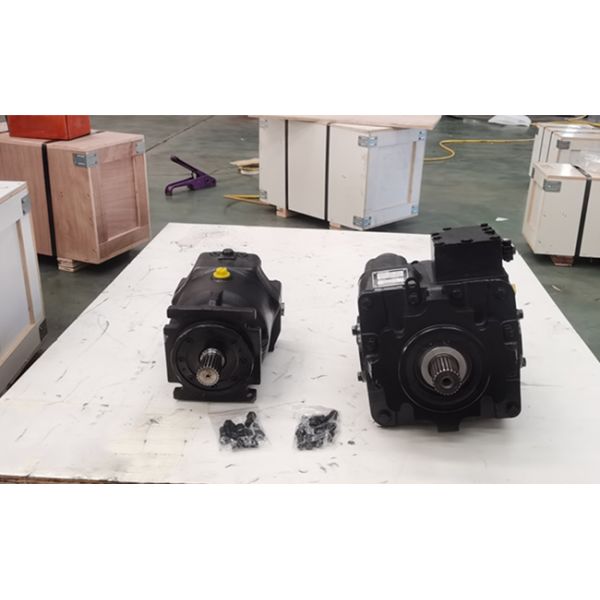

HPV110 model agricultural hydraulic fittings hydraulic pumps
Agricultural Hydraulic Pumps introduction:
Agricultural hydraulic pumps are variable displacement axial piston pumps, which are widely used
for agricultural hydraulic fittings. Agricultural hydraulic pumps
are driven by the prime mover, converting the input mechanical
energy into the pressure energy of the liquid, and then inputting
it into the system in the form of pressure and flow. It is the
hydraulic power source of the hydraulic system, because it can
transport liquids under high pressure.
| Product Name: | HPV110 model agricultural hydraulic fittings hydraulic pumps | Structure: | Axial Piston Pump |
|---|
| Type: | Hydraulic Components | Drive Mode: | Hydraulic Drive Mode |
|---|
| Material: | Cast Iron | Efficiency: | 97% |
|---|
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
|---|
| Function: | Hydraulic System Components | Package: | Plywood Case |
|---|
Agricultural hydraulic fittings hydraulic pumps main features:
- Series 20 agricultural hydraulic pumps are well engineered and easy
to handle.
- Bearings of Variable Axial Piston Pumps are all tapered roller
bearing, which can load heavy external axial forces.
- Agricultural hydraulic pumps can be connected with other additional
pumps.
- When Hydraulic pumps operated mechanically, the Servo displacement
can control and keep the angle of swash plate and pump
displacement.
- Upon release of the control handle, swash plate return to zero
position automatically and the flow reduces to zero.
- Hydraulic pumps has shaft oil seals performance, even at the lowest
temperature and high case pressure.
- Servo valve of piston pump can connect function regulators and
remote control systems.
- Axial piston pumps can easy maintain and can be disassembled and
assembled by standard tools. All components are replaceable.
HPV110 hydraulic pumps usage:
With the improvement of science and technology, nowadays
agricultural hydraulics are becoming more and more common, our
agricultural hydraulic axial piston pumps motors could make
hydraulic farming easy, which are used for kinds of agricultural
equipment, such as combine harvesters, cotton picker, grape
machinery, tractors, etc farming machinery.
Hydraulic oil notice of agricultural hydraulic pumps:
The higher the cleanliness of the hydraulic oil, the longer the
service life of the hydraulic pump.
Hydraulic oil:
Generally speaking, the replacement time of hydraulic oil of sealed
oil tank system is 2000hours. If the hydraulic oil is contaminated
or other outside material bears abnormal running condition, the
hydraulic oil should be changed often.
Hydraulic oil in the open oil tank system should be changed every
500hours. For different vehicle, the measures should determined by
specific design and operational experience.
Company service of HPV110 hydraulic pumps:
Highland is a technology-led production-oriented enterprise. With
its reputation for high-quality and cost-effective products, it has
won many favors at home and abroad. Meantime Highland owns a
production base of 7000 square meters, independent research and
development, production and factory direct sales.
1. Quick response within 24 hours
2. Accept small order(MOQ:1pcs)
3. We are a manufacturer, we can produce hydraulic pumps for you at
the moment of placing the order with most competitive price.
4. Excellent after-sales service
5. Strict quality control system. 100% factory testing and
inspection personnel in accordance with international standards to
ensure the quality of products manufactured.
FAQ of agricultural hydraulic pumps:
Q: Are you a manufacturer or trading company?
A: We are a manufacturer with own plant manufacturing hydraulic pump.
We have 20 years experience in hydraulic industry for oversea and
domestic markets.
Q: What is the MOQ?
A: 1pc is also OK. welcome sample order to test and check quality.
Q: How long is your warranty?
A: All our products come with an one (1) year warranty.
Q: Which payment terms could you accept?
A: Payment Terms: T/T , Western Union or Cash .
Q: Does your company accept customization?
A: We have our own factory, and excellent design team, and we
accept OEM.
