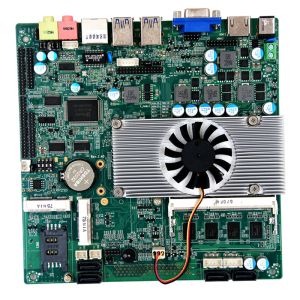

Ivy Bridge I7-3517U Thin Itx Motherboard Onboard DDR3 Industrial
Mainboard
Notice :
When you inquiry , you can choose the following Model :
ITX-P2441D-3THM-i3 , Integrated Intel® Broadwell i3-3110M dual
cores 4 threads 2.4Ghz processor
ITX-P2441D-3THM-i5 , Integrated Intel® Broadwell i5-3210M dual
cores 4 threads 2.5~3.1Ghz processor
ITX-P2441D-3THU-i7, Integrated Intel® Broadwell i7-3517U dual cores
4 threads 1.9~3.0Ghz processor
ITX-P2441D-3THU-i7, Integrated Intel® Broadwell i7-3667U dual cores
4 threads 2.0~3.2Ghz processor
Ivy Bridge i7-3517U motherboard onboard DDR3 SODIMM 204 Socket Max
support 8GB DDR3 Ram
Key features
Integrated Intel® Core™ Ivy Bridge i7-3517U Processor dual cores 4
threads 1.9~3.0Ghz
Support Single channel DDR3 1066/1333/1600MHz up to 8GB
Onboard 2GB /4GB Ram
Intel HD graphics 4000
Support LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous or asynchronous
display
Support 4*SATA3
Support 1*Mini-PCIe M-SATA
2*RS232 COM
4*USB3.0
4*USB2.0
1* Gigabit LAN
DC 12V power supply
Dimension: 170mm X 170mm
Specifications
| Processor | CPU | Integrated Intel® Core™ Ivy Bridge i7-3517U Processor dual cores 4
threads 1.9Ghz Max Turbo Frequency 3.0Ghz |
| CPU Package | BGA |
| Chipset | Intel® HM77/HM76 Express Chipset Optional. |
| BIOS | AMIEFI32MB SMT/DIP-SPI Flash ROM |
| Ram | Technical architecture | DDR3 memory,1066/1333/1600MHz. |
| Capacity | Onboard 2GB /4GB Ram |
Video | Graphic controller | Intel HD Graphics 4000 (CPU Integrated ) |
| Dual LVDS | Support dual channel 24bit LVDS connector |
| HDMI | Resolution maximum:1920*1200 |
| Double display support | LVDS+VGA,LVDS+HDMI,HDMI+VGA,Synchronous or asynchronous display |
| Rear Panel I/O | Ports | 1*HDMI 1*VGA port 1*Lan 4*USB 3.0 port 1*Audio I/O interfaces
(Line_out,Mic_in) |
| Network | Controller | Onboard 1*Gigabit Ethernet,support PXE and Wakeup on LAN. |
| Audio | Controller | Onboard HDA ALC662,provide MIC-IN/LINE-OUT and expansion header. |
| Super I/O | Controller | NCT6106D |
| Hardware Monitor | Watchdog-Timer | 0~255 timer |
| Cooler | Aluminum heat sink(fan or fanless) |
| Input/Output interfaces | USB | 8*USB(4*USB 3.0 port 4*USB 2.0 expansion header),Max. supported
5V/1A |
|
| Serial port | 2*COM expansion headers(RS232),4*COM expansion headers(support
RS232/422/485)(Optional) |
| PS/2 | |
| GPIO | 8*GPIO expansion header(8 bit),3.3V@24mA electrical level |
| Expansion Sockets | Mini-PCle | 2*Mini-PCIE socket for WIFI/3G |
| SIM | 1*SIM card slot for 3G |
| Storage | SATA | 4*standard SATAII interfaces |
| M-SATA | 1*Mini SATA socket for SSD |
| Power supply | Power Type | Single input DC power supply,12V-DC,+/-5% |
| Power Consumption | 20W |
| Work environment | Working temperature | -20°C~60°C (-32°F~140°F) |
| Storage temperature | -40°C~85°C (-104°F~185°F ) |
| Working humidity | 10%~90% (non-condensing) |
| Storage humidity | 10%~90% (non-condensing) |
| Measure | Size | 170mm x 170 mm |
| Weight | 0.5KG |
