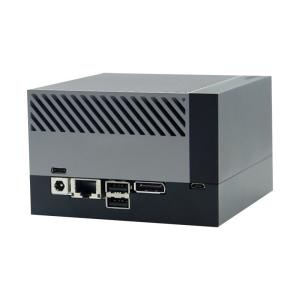

    64GB AI SBC Embedded System NVIDIA Jetson AGX Orin Developer Kit PCIe Gen 4 16 Lanes MIPI CSI-2

    Ask Lasest Price
    Brand Name : NVIDIA
    Model Number : Jetson AGX Orin Developer Kit
    Price : $2500-$2600 \set
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 1+set+4weeks
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

    64GB AI SBC Embedded System NVIDIA Jetson AGX Orin Developer Kit PCIe Gen 4 16 Lanes MIPI CSI-2

    64GB AI SBC Embedded System NVIDIA Jetson AGX Orin Developer Kit PCIe Gen 4 16 Lanes MIPI CSI-2

    NVIDIA Developer Kit (NVIDIA Jetson AGX Orin Developer Kit)
    The NVIDIA AI kit (AGX Orin developer kit) is produced by NVIDIA, the industrial embedded system letting you create advanced robotics and edge AI applications for manufacturing, logistics, retail, service, agriculture, smart city, healthcare, and life sciences.The 12-core CPU on Jetson AGX Orin enables 1.7x the performance compared to the 8-core NVIDIA Carmel CPU on Jetson AGX Xavier. Customers can use the enhanced capabilities of the Cortex-A78AE including the higher performance and enhanced cache to optimize their CPU implementations.NVIDIA Jetson AGX Orin brings support for 1.4x the memory bandwidth and 2x the storage of the Jetson AGX Xavier, enabling 32 GB of 256-bit LPDDR5 and 64 GB of eMMC. The DRAM supports a max clock speed of 3200 MHz, with 6400 Gbps per pin, enabling 204.8 GB/s of memory bandwidth. Figure 8 highlights how each of the various components interact with the Memory Controller Fabric and the DRAM.


    NVIDIA Jetson AGX Orin Technical Specifications

    AI Performance

    275 TOPS (INT8)

    GPU

    NVIDIA Ampere architecture
    with 2048 NVIDIA CUDA® cores and 64 Tensor Cores

    CPU12-core Arm Cortex-A78AE v8.2 64-bit CPU
    3MB L2 + 6MB L3

    Vision Accelerator

    PVA v2.0
    Memory

    32GB 256-bit LPDDR5

    204.8 GB/s
    Storage

    64GB eMMC 5.1

    Display1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
    CSI Camera

    Up to 6 cameras (16 via virtual channels*)
    16 lanes MIPI CSI-2
    D-PHY 1.2 (up to 40Gbps) | C-PHY 1.1 (up to 164Gbps)

    Safety Cluster Engine-
    Video Encode

    2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265)

    Video Decode

    1x 8K30 | 3x 4K60 | 6x 4K30 | 12x 1080p60 | 24x 1080p30 (H.265)

    UPHY

    2 x8 (or 1x8 + 2x4), 1 x4, 2 x1 (PCIe Gen4, Root Port & Endpoint)
    3x USB 3.2

    Single-lane UFS
    Networking

    1x GbE
    4x 10GbE

    USB

    USB Type-C connector: 2x USB 3.2 Gen2
    USB Type-A connector: 2x USB 3.2 Gen2, 2x USB 3.2 Gen1
    USB Micro-B connector: USB 2.0

    Other I/O

    4x USB 2.0
    4x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, DMIC & DSPK, GPIOs

    Power

    15W | 30W | 50W

    Mechanical

    100mm x 87mm
    699-pin Molex Mirror Mezz Connector Integrated Thermal Transfer Plate


    *Virtual Channel related camera information for Jetson AGX Orin is not final and subject to change.
    ** Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features


    Reference Carrier Board

    Camera16 lane MIPI CSI-2 connector
    DisplayPortDisplayPort 1.4a (+MST)
    M.2 Key Mx4 PCIe Gen 4
    M.2 Key Ex1 PCIe Gen 4, USB 2.0, UART, I2S
    USB Type-A2x USB 3.2 Gen2
    2x USB 3.2 Gen1
    USB Type-C2x USB 3.2 Gen2 with USB-PD support
    USB Micro-BUSB 2.0
    PCIex16 PCIe slot:
    Lower x8 PCIe Gen4
    MicroSD slotUHS-1 cards up to SDR104 mode
    Other40-pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC)
    12-pin automation header
    10-pin audio panel header
    10-pin JTAG header
    4-pin fan header
    2-pin RTC battery backup connector
    DC power jack
    Power, Force Recovery, and Reset buttons
