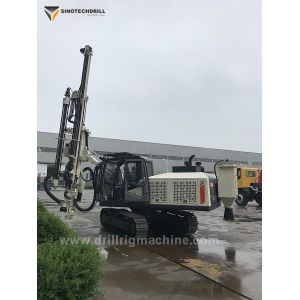

Efficient Drilling,Reliable and Stable DTH Drill Rig Machine
Characteristics:
* Efficient drilling:LD100 rock drill specially developed by
Sandvik, with high drilling efficiency
* Energy saving:Mature advanced load-sensitive control system and
air compressor management system to effectively reduce fuel
consumption.
* Reliable and stable:First-class hydraulic and electrical
components, dustproof, waterproof, high temperature resistant,
stable quality and reliable performance.
* Easy maintenance:The whole machine layout is reasonable, daily
maintenance can be carried out on the ground.
* Safety and environmental protection:Adhering to Sandvik's “safety
first” and “environmentally friendly” design concepts, safety
facilities are available, and dust collector effect is good.
Main parameters
| Total weight | kg | 14260 |
| Hole diameter | mm | 64-102 |
| Rock drill model | LD100 |
| Rock drill output power | kw | 17.5 |
| Rod model | T45 |
| Rod length | mm | 3660 |
| Engine and Power | Cummins164kw@2200RPM,QSB5.9three stages |
| Air compressor | 6m³/min@7bar |
| Shipping size | length | mm | 9585 |
| width | mm | 3005 |
| height | mm | 3440 |
