Qr Code Recognition Integrated Solution Guard Tour Patrol
Checkpoint System
Advanced Security Guard Touring System
1. Description
(1) HUA-K6 is not only real time data transmission product, which
can upload data through 4G/3G/2G network to cloud software in
realtime. It is necessary to insert SIM card.
(2) The cloud software is simple and free to use.Multi-site and multi-personnel management. Let the management work
more centralized, more convenient
(3) The device is waterproof, dustproof and drop resist. It can
still work even after dropping from 1.5m height.
(4) Face identification. The mobile app device has face identification
feature for guards to login patrol app easily and quickly
(5) 5200 mah battery capacity. It takes about 5 hours to be full charge. A
full charge can take up for about 20 hours on all the time.A full charge will support about a week on the basic of 400 times
reading per day.
(6) Walkie talkie. No distance limit, just need internet. Could
control talk group in software.
(7) GPS+Glonass+Beidou accurate localization. Know where your
guards are now and their moving track during patrol hours
(8) Front and rear HD double-camera. Record patrol scene clearly if
any problem and emergency
(9) Perfect problem reporting, progress tracking and feedback
process
(10) SOS alarm. One key sos alarm to trigger software alarm and SOS
call
2. Specification
| Device | Length | 194 |
| Width | 23 |
| Height | 72 |
| weight | 280 |
| Screen | material | TFT |
| size | 4 inches |
| solution | 480*800 |
| glass | Corning |
| point | ≥5 |
| technology | Capacitive |
| Camera | Front | 2 million pixel |
| Back | 8 million pixel |
| Battery | capacity | 5200 mAh |
| type | non-removable, rechargable |
| material | Lithium |
3. Parameters
| Parameters | Structure | Straight type |
| Operation system | Android 10.0 |
| Processor | MT6739 1.5Ghz*4 |
| Support network | 2G/3G/4G/Wifi |
| Working temperature | 0°C to +60°C |
| Sensor type | Gravity inductor, light sensor |
4. Features
(1) Antenna
(2) Volume Adjustment Switch
(3) Camera
(4) Screen on/off button
(5) TM/SIM card port
(6) USB port
(7) Flashlight Switch
(8) Photo button
5. Strength
HUA-K6 is very durable, waterproof and dustproof. K6 is designed to
withstand drops, dust, vibrations and even extreme temperatures,
and the aim is durability. 360-degree protection is beneficial to
normal use in severe storms and rainwater environments. In
addition, we provide logo customization form more than 50 pcs.
6. Application
Guard tour system products are widely used in:
- Hospitals
- Shopping mall
- Natural Gas Pipelines
- Factories
- Communities
- Gas Station Service
- Museum
- Bank
- Schools
- Government buildings
- Logistics Railway
- Subway station
7. Chekpoints

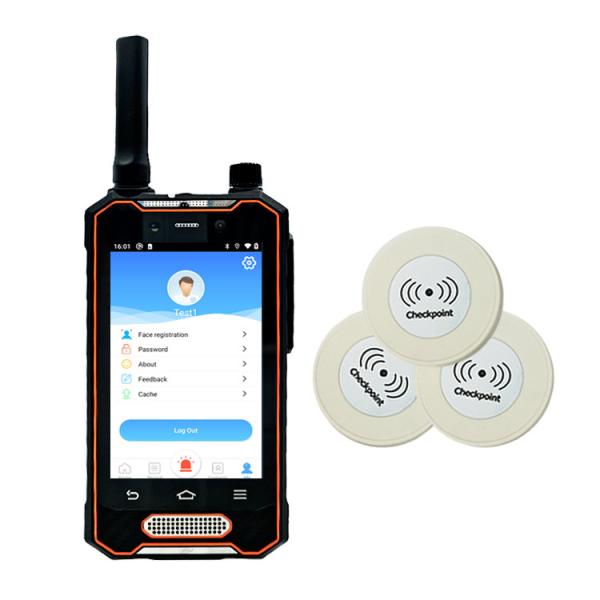

HUA-K6 supports NFC/iBeacon/Qr-code Checkpoints.
| RFID checkpoint | Inductive mode: RFID |
| Frequency: 13.56MHz |
| Waterproof and anti-fall |
| No need power |
| QR checkpoint | Inductive mode: QR |
| QR code scanning identification, no need to install guard tour
points. |
|
|
| Waterproof and anti-fall |
| No need power |
8. Package
One set (including Reader, ejection pin, Charger, USB cable) in a
blue inner box, 10 inner boxes in a small carton, 30 inner boxes in
a big carton *customized package*
FAQ
Q : How many days can I get the products if I placed purchase
order?
A : In general, about 1-3 working days for Sample and ready stock;
15 working days for production order after receving order deposit.
Q : Which payment can be accepted?
A : T/T, Paypal, Western Union and L/C etc.
Q : When did you start?
A : We have started our factory from year 2000, and we have
experience of producing and developing Biometric attendance and
access control terminals for more than 15 years. All of our
engineers are professors in this area.
