    Precision Alloy Iron Nickel Wire Invar/ Vacodil36/ Feni36

    Ask Lasest Price
    Brand Name : JX
    Model Number : Precision Alloy Iron Nickel wire Invar/ Vacodil36/ Feni36
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 3000T
    Delivery Time : 35days
    • Product Details
    • Company Profile

    Precision Alloy Iron Nickel Wire Invar/ Vacodil36/ Feni36

    Precision Alloy Iron Nickel Wire Invar Precision Alloy Iron Nickel wire Invar/ Vacodil36/ Feni36


    Product Description

    Invar/ Vacodil36/ Feni36 Wire for Sealing Glass


    Precision Alloy Iron Nickel Wire Invar Application: Invar is used where high dimensional stability is required, such as precision instruments, clocks, seismic creep gauges, television shadow-mask frames, valves in motors, and antimagnetic watches. In land surveying, when first-order (high-precision) elevation leveling is to be performed, the leveling rods used are made of Invar, instead of wood, fiberglass, or other metals. Invar struts were used in some pistons to limit their thermal expansion inside their cylinders.

    Precision Alloy Iron Nickel Wire Invar Chemical Composition in %, Invar

    Ni
    35-37%

    Fe
    .

    C
    0.05%

    Si
    0.3%

    Mn
    0,3-0,6 %

    S
    o 0.015%

    P
    0.015%

    Mo
    0.1%

    V
    0.1%

    Al
    0.1%

    Cu
    0.1%

    Cr
    0,15 %

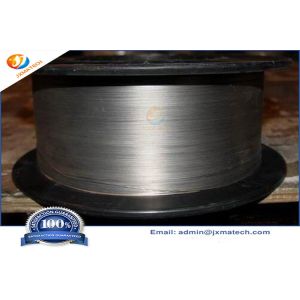

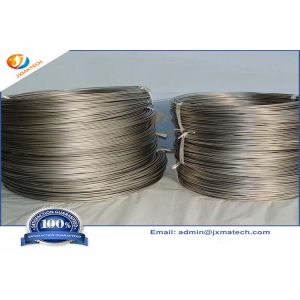

    Precision Alloy Iron Nickel Wire Invar Picture:

    Basic physical constants and mechanical properties of the alloy:

    Density: γ = 8,1 g / cm3;
    Electric resistivity: ρ = 0,78 ohm mm2 ? / m;
    The temperature of the Curie point: Θs = 230 ° C;
    Modulus of elasticity E = 144 kN / mm2;
    Linear expansion coefficient a1 (20-100 ºC) ≤1,5 * 10-6 ºC -1


    Temperature Range/ºC1/10-6ºC-1Temperature Range/ºC1/10-6ºC-1
    20~-601.820~2503.6
    20~-401.820~3005.2
    20~-201.620~3506.5
    20~01.620~4007.8
    20~501.120~4508.9
    20~1001.420~5009.7
    20~1501.920~55010.4
    20~2002.520~60011
