Forged Discs & Gear Blanks Open Die Forgings Forged Parts - Rods
Rings Discs Bushings
Open die forging is an important technique for many types of
manufacturing. It allows rough and finishing shaping of metal, most
commonly steel and steel alloys. It requires a die that is open on
the sides, allowing the workpiece to move freely, in a lateral
direction, when struck. This type of design also allows for forging
of very large workpieces, in some cases, weighing many tons and
having great length and width.
Open die forgings can be worked into shapes which include discs,
hubs, blocks, shafts (including step shafts or with flanges),
sleeves, cylinders, flats, hexes, rounds, plate, and some custom
shapes.
In Open die forging, a rough or precision machining is normally
further required after the open die forging process as imprecise
dimensions are achieved by hammering. Thus, open die forging is
more suitable for large parts in a number of tons. Generally, the
products in forging method include forged long shafts, forged
rollers, and forged cylinders, which are mostly used for the
application of railway and aircraft industry.
Forged disc & gear blanks open die forgings Specification
| Application | Heavy duty industry |
| Diameter | φ150mm-15000mm |
| Smelting | EAF+LF+VD |
| UT | SEP1921,EN10228-3 C/c D/d |
| Heat treatment | Normalized , queching and tempering ,stress relief (if needed
)+others |
| Delivery condition | Rough ,Semi-finished ,finished |
| Standard | EN10250,EN10083,SEW550 etc. |
| Equiment | 5000T pressing machine |
Forged disc & gear blanks open die forgings Material we could provide
| Type | Material |
| Carbon steel | C15,C22,C25,C30,C35,C40,C45,C50,C55,C60,S355J2G3 etc. |
| Alloy steel | 25CrMo4, 42CrMo(S)4, AISI4130, AISI4140, AISI4150, 34CrNiMo6, 30CrNiMo8, 31CrMoV9, 20MnCr5, 20CrMnMoH 18CrNiMo7-6,16MnCr(S)5,20MnCr(S)5,51CrV4, etc. |
| Stainless steel | 630 17-4PH,630 17-7PH, 632 15-7MoPH,XM12 15-5PH,2205,2507,F55,2205
etc. |
| Tool and die steel | H11-1.2343,H13-1.2344, 1.2738,1.2718 ,1.2343, 1.2312 ,XPM , NAK80,
DVA etc. |
| Special steel | GH2132, GH3030, GH3128, GH4145 ,GH4169 ,GH4080 ,Inconel600 ,
Inconel601 ,Inconel625 ,Inconel718 N07718 / GH4169, Inconlex - 750,
Incoloy800H,Incoloy825,Incoloy901,Incoloy925,Incoloy926 etc.
|
Forged disc & gear blanks open die forgings About Guangda
Guangda is a specialized in forging research and development,
production, sales, service as one of the comprehensive company. We
could provide rough blank or semi-finishing or finishing parts
focuses on large forging equipment .We have formed a whole
industrial chain of smelting,forging, machining and surface
treatment, and our technology and cost control are leading in the
world.
As a leading forging manufacturer, we have greater resilience in
our production, which makes our forged steel shaft turnaround very
fast. In addition, due to our distinguished characteristics of
manufacturing and raw materials, the quality of forged steel that
we create are of better quality than forgings machined from other
stock.
| Company type | Science and Technology innovation board listed company.
Stock code :688186 |
| Completed supply chain | Guangda is an leading and integrated steel manufacturer from
smelting, forging, heat treatment to precision smart manufacturing
. |
| Shape | Ring, Shaft, disc, round plate, Dysplasia forgings etc. |
| Smelting | Smelting capacity 500,000.00 ton/year . With own smeliting line of
carbon steel,stainless steel, alloy steel and special steel . |
| Annual capacity for the forgings | Forging capacity 300,000.00 ton/year . With own professinal forging
press machines 5000ton,4500ton,4000ton,3600ton,2000ton,1000ton and
ring rolling mill machines and could manufacture the forging blank
ourselves. |
| Machining | Turning, milling, boring ,grinding, finished machining, gear
shaping ,gear hobbing, gear grinding capability. |
| Heat treatment | Own professional equipment for heat treatment for Annealing
,Normalizing ,Tempering ,QT, Isothermal annealing,Stress relief ,
Nitriding , Carburize ,Case-hardening etc |
| Surface treatment | High-pressure cleaning, sand blasting and thermal spraying.
Complete surface treatment capability. |
Smelting
Forging
Heat treatment
Machining
Products in workshop

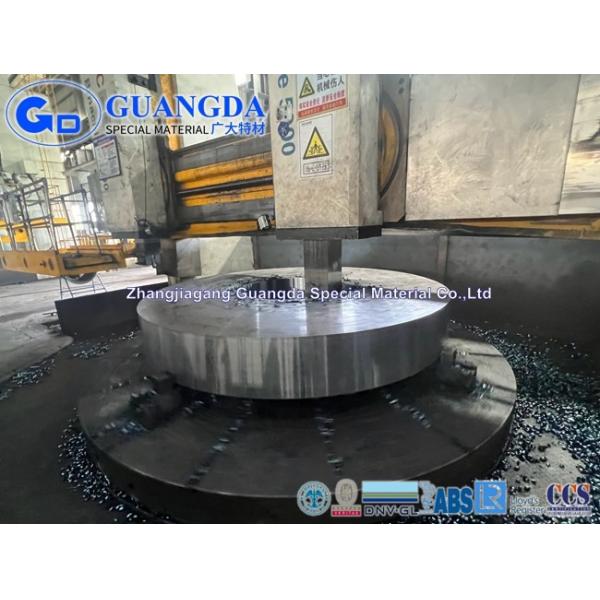

Forged disc
Gear blank
China forging factory
