20p 10pin-100pin 16 pin double row box header connector pitch
2.54mm waterproof

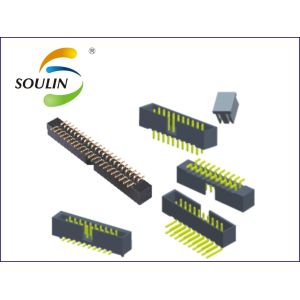

Box header definition
Box header is a kind of connector, English name: Box header
connector .
This connector is widely used in electronics, electrical
appliances, instrumentation in the PCB circuit board, its role is
in the circuit is blocked or isolated between the circuit, to play
the function of a bridge, the task of current or signal
transmission.
Usually used in conjunction with the female header to form a
board-to-board connection; or with the electronic harness terminal
to form a board-to-wire connection.
Because the specifications required for different products are not
the same, so there are a variety of models and specifications.
box header is widely used in car monitoring, instrumentation,
Internet of Things, new energy vehicles, LED display field, POS and
scanner, lighting industry, security industry, electronic toys,
home appliances, etc., providing the most reliable connection
board-to-board and wire-to-board.
Drawings
product detail
Insulation plastic (UL94V-0) material: PBT (only to meet the wave
soldering process).
High temperature insulation plastic (UL94V-0) materials: PA6T,
PA9T, LCP (can meet the wave soldering, reflow soldering two
processes).
Insulation plastic color can be divided into: black, white, blue,
this color, etc.
Square pin material: brass (H65)
(Hardware contact terminal surface treatment: nickel plating first
after gold or silver plating, bright tin plating, tin-free plating,
semi-gold tin plating, etc.).
pitch can be roughly divided into: 1.27mm, 2.00mm, 2.54mm
The number of rows can be roughly divided into: double row
The height of plastic can be roughly: H4.9, H5.4, H5.7, H9.0, and a
variety of height and plastic stacking.
Firstly, the insulating plastic is molded and the guidelines are
stamped according to the requirements, and the guidelines are
plated with nickel and then with gold or silver, bright tin,
tin-free, semi-gold tin, etc.
Finally, we will assemble the guidelines to the insulating plastic
on the special equipment according to the size requirements.
| Current rating | 1.5Amps |
| plastic material | PA6T/PA9T/LCP+30%G.F |
| Operation temperature | -40℃to+105℃ |
