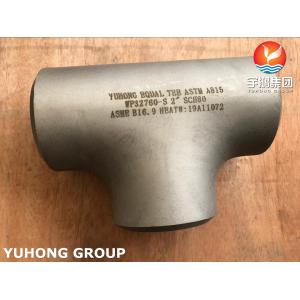

    B16.9 Buttweld Pipe Fittings ASTM A815 WP32760 / 1.4501 Super Duplex Steel Equal Tee

    Ask Lasest Price
    Brand Name : YUHONG
    Model Number : ASTM A815 S32750
    Certification : API , ABS, DNV, GL , LR, NK.
    Payment Terms : L/C,T/T
    Delivery Time : 7 DAYS
    • Product Details
    • Company Profile

    B16.9 Buttweld Pipe Fittings ASTM A815 WP32760 / 1.4501 Super Duplex Steel Equal Tee

    B16.9 Buttweld Pipe Fittings ASTM A815 WP32760 / 1.4501 Super Duplex Steel Equal Tee


    The ASTM A815 covers Duplex Steel and Super Duplex Pipe Fittings / Buttweld Fittings used for bleaching equipment in the pulp and paper industry also for high-temperature service. Super Duplex UNS S32760 is among the most common super duplex grade in the market. UNS S32760 is a duplex stainless steel especially designed for service in aggressive chloride-containing environments and has additions of W and Cu compared to UNS S32750. It has very good resistance to localized corrosion and stress corrosion cracking in combination with high mechanical strength.


    Super Duplex S32760 Buttweld Fittings Specifications

    SpecificationUNS S32760 Pipe Fittings
    Type Of Pipe ConnectionEnd Bell/ Flange/ Clamp End/ Threaded/ Weld
    Wall ThicknessSCH 5S To SCH 180S
    Standard DimensionsMSS-SP-43 Type B, JIS B2312, MSS-SP-43 Type A, ASME B16.9, JIS B2313, ASME B16.28
    Length SizesNPS 1/2" to NPS 48"
    Top 5 Fittings StandardsDIN, EN, ISO, JIS, NPT
    We Offer Type Of Fittings At Low PriceTee, Reducer, Stub End, Bend, Adapter, Wye, Cross, Elbow, End Cap
    IBR Approved Manufacturer Of Steel MaterialsCopper, Iron (Ductile/Cast), Carbon Steel, Alloy Steel, Brass, Bronze, Cupro-Nickel 90/10 & 70/30, Nickel, Titanium, Chrome-molybdenum, Nickel Alloys, Tantalum, Stainless Steel, Inconel, Monel, Hastalloy
    Maximum PressureClass 150 To Class 2500

    ASTM A815 S32760 Super Duplex Steel Pipe Fittings Equivalent Grades

    STANDARDWERKSTOFF NR.UNS
    Super Duplex 25071.4410S32760

    ASTM A815 Super Duplex S32760 Buttwelding Fittings Chemical Composition

    Chemical ElementCCrMnSiPSNiNMoFe
    % Present0.05 max24.00 – 26.001.00 max1.00 max0.030 max0.010 max6.00 - 8.000.20 – 0.303.00 – 4.0057.61 min

    ASTM A815 Super Duplex S32760 Buttwelding Fittings Pechanical Properties

    DensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
    7.8 g/cm31350 °C (2460 °F)Psi – 116000 , MPa – 800Psi – 80000 , MPa – 55015 %

    Equivalent Grades of Super Duplex S32760 Pipe Fittings

    STANDARDWERKSTOFF NR.UNS
    Super Duplex1.4501S32760

    Applications

    Duplex stainless steels are typically used in:

    • Chemical processing, transport and storage
    • Oil and gas exploration and offshore rigs
    • Oil and gas refining
    • Marine environments
    • Pollution control equipment
    • Pulp & paper manufacturing
    • Chemical process plant
