China Manufacturer High quality Black PC Waffle Pack Chip Tray
The chip tray is mainly used for QFA, BGA, TSOP, PGA and other
semiconductor packaging inspection, storage and transportation.
They can also provide functions such as high temperature
resistance, anti-static electricity and so on. We design and
manufacture such products to meet the needs of our customers.
Hiner-pack as a specialist manufacturer of industrial products and
component trays, we create trays for the transport, packaging,
storage and protection of a wide variety of precision components.
From optical components to electronic components, we will continue
to do our best to create a richer lineup of IC trays and other
products.

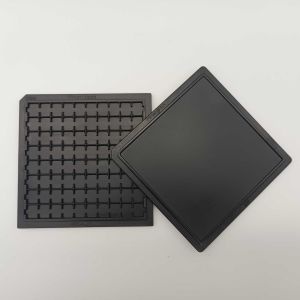

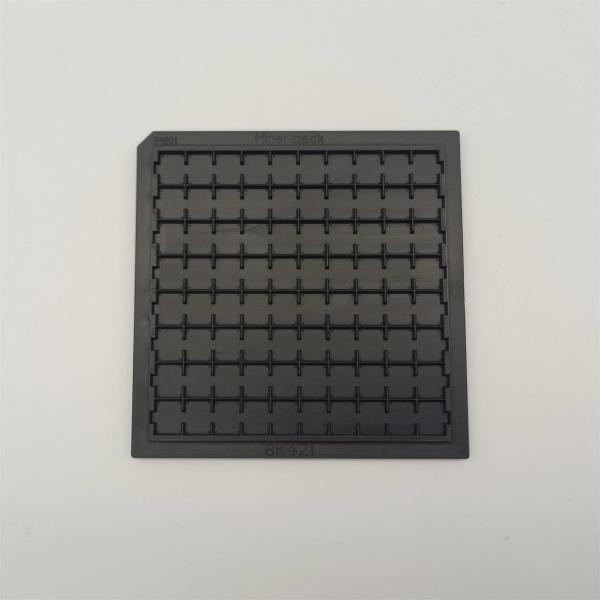

Details of the HN21120 Black Waffle Pack
HN21120 waffle pack is used to provide clean, safe packaging for
bare mode and other microelectronic devices. It’s a standard design
of a 4-inch square with a 10*8 matrix. The chip tray should be
selected for pocket size, with the aim of not allowing the device
to rotate or flip over in the pocket.
Hiner-pack has a large inventory of industry standard chip trays to
meet your packaging needs. At the same time, according to the
different needs of customers, there are also lids, clips and Tyvek
paper for use with the chip tray base. In addition, we can also
provide professional customized service according to the size and
drawings provided by customers. With the perfect design to achieve
the most reasonable loading.
| Outline Line Size | 101.57*101.57*5.5mm | Brand | Hiner-pack |
| Model | HN21120 | Package Type | Die |
| Cavity Size | 9.58*7.43*2.38 | Matrix QTY | 10*8=80PCS |
| Material | PC | HS Code | 3923900000 |
| Color | Black | Service | Accept OEM,ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS SGS |
Application of HN21120 Waffle Pack Chip Tray
Electronic component Semiconductor
Micro and Nano systems Sensor IC
| Outline Size | Material | Surface Resistance | Service | Flatness | Color |
| 2" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.2mm | Customizable |
| 3" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.25mm | Customizable |
| 4" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.3mm | Customizable |
| Custom size | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | TBC | Customizable |
| Provide professional design and packaging for your products |
Advantages
1.We made all products with best material had passed certificate.
2.We have our professional designer so that we can not only produce
customers own design, but also we can design for customers based on
the customers requests.
3.100% manufacturer,competitive price.
4.The samples are free.
5.We will provide best service since we meet the client,and will do
our best to solve the entire problem.
FAQ
Q1: Are You Manufacturer or Trade Company?
Ans:We are the 100% Manufacturer specialized in packaging over 10
years with 1500 square meters workshop area, located in Shenzhen
China.
Q2: What is the material of your product?
Ans:ABS.PC.PPE.MPPO.PEI.HIPS...etc
Q3: Can you help with the design?
Ans:Yes, we can accept your customization and do the packaging for
you according to your requirement.
Q4: How can I get the quotation of the custom products ?
Ans:Let us know the size of your IC or component thickness,and then
we can make a quotation for you.
Q5: Can I get some samples before making a bulk order?
Ans:Yes, the fee sample in stock can be sent, but the shipping fee
should be paid by yourself.
Q6: Could you put my logo in our product?
Ans:Yes, we can put your logo in our product, show us your logo
firstly please.
