    Food Industry 2L Powder Making Machine Atomizer Lab Scale Spray Dryer

    Ask Lasest Price
    Brand Name : Guojin
    Model Number : Lab Type
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets per month
    Delivery Time : 20-30days
    • Product Details
    • Company Profile

    Food Industry 2L Powder Making Machine Atomizer Lab Scale Spray Dryer

    Food Industry 2L Powder Making Machine Atomizer Lab Scale Spray Dryer


    Products Features:

    1. High efficient jet imported.
    2. LCD touch screen displays temperature, airflow, air pressure, pump speed and jet cleaner frequency.
    3. Auto controlling: one touch on/off, once processing parameters are set, peristaltic pump will be auto started; screen displays animation of the whole process of experiment.
    4. Manual controlling is available, be able to adjust technical parameters during the process of experiment
    5. With jet cleaner (stylet), its frequency can be automatically adjusted.
    6. Power off thermal-protection, push off button and the equipment will stop at once, except draught fan, make sure equipment won't be burned out by incorrect operation (Forcibly shut fan).
    7. Spray chamber, cyclone separator, and receiving tank are all made of transparent heat-resistant high-borosilicate glass; it creates a no-pollution environment for the drying process. All the spare parts are easy to install and wash.
    8. Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.
    9. Two-flow spray atomizing structure, whole machine is made of high quality stainless steel, compact design no accessory equipment is needed.
    10. Use PID controller, the accuracy of heating temperature is around±1°C.
    11. A filter has been equipped to the inlet unit to prevent the sample from contamination.
    12. The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution. To make sure the process conducted steady and smoothly.
    13. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
    14. Automatic jet cleaner (stylet) prevents the jet from becoming blocked and variably controlled.
    15. Innovative tower wall purging device, improves the material recycling rate.


    Technical Datas
    Item

    VOSHIN-2000P


    SpecificationsLab type spray dryer
    Inlet air temperature control30 ℃ ~ 300 ℃
    Outlet temperature control30 ℃ ~ 140 ℃
    Evaporated water1500mL / H ~~ 2500ml / h
    Feed amount30ml ~ 2500ml / h adjustable
    Feeding methodPeristaltic pump adjustment
    Dry air flow0 ~ 330m3 / h
    Dry air full pressure686Pa
    Temperature control accuracy± 1 ℃
    Average drying time1.0S ~ 1.5S

    Display parameters

    Air inlet temperature, air outlet temperature, peristaltic pump speed, fan flow rate, pass needle

    Frequency.

    Nozzle size1.0mm can be customized

    Structural features

    Food-grade stainless steel machine and atomizer + spray, drying, and collection bottles are made of high-borosilicate

    heat-resistant glass

    rated power3KW
    Power supplyAC220V / 50Hz
    Dimensions(HxLxW)1200mm × 650mm × 500mm
    The standard configuration1 host + 1 glass container pipe + 1 built-in air compressor
    Weight65kgs

    Capacity

    Feed capacity: 30ml-2500ml/h, finish capacity: about 1kg/h

    water evaporation: 1500ml-2500ml/h

    MaterialAISI 304
    FanWith VFD
    Control SystemPLC
    Others

    Small air pump, industrial switch,

    a data line

    Accessories
    NoNameQty
    1Drying Chamber1
    2Cyclone1
    3Fan1
    4Peristaltic pump1
    5Air compressor1
    6Collection bottle 500ml1
    7Sample collection tube1
    8Silicone tube 6mm1.5m
    9Nozzle1
    10Black Clamp1
    11Nozzle cleaner1
    12Power wire1

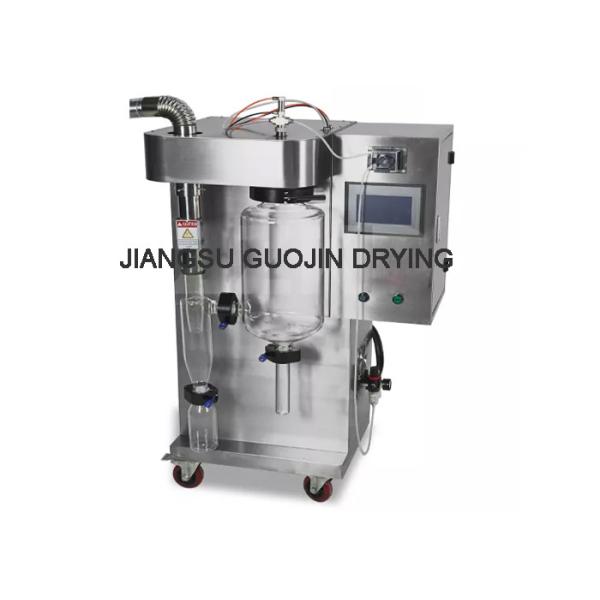

    Bench Type Lab Spray Dryer Pictures
