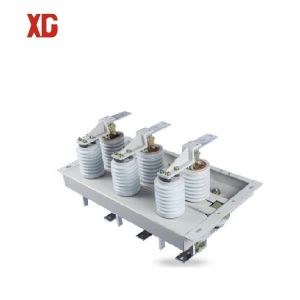

1.HV&MV Switchgear GN30 Type 10kv 11kv Indoor 630A Electrical Disconnector 11kv Disconnector

Gn30-12d switch is based on gn30-12 switch to add the ground knife form, can meet the needs of different power systems. This product has compact design, small footprint, strong insulation ability, easy installation and adjustment. Its performance meets the requirements of GBI 895-89 AC high voltage isolator and ground switch. Suitable for rated voltage 10kV AC 50Hz and below indoor system. Can be used in voltage, no-load condition of the opening and closing circuit. It can be used with high voltage switchgear, or can be used alone.

2.Product Technical Specifications

3.Outline and installation dimensions

4.Working environment conditions

1,Ambient temperature: Upper limit: +40°C; Lower limit: -15°C;

2,The altitude does not exceed 1000m.

3,For relative air humidity, the daily mean is not greater than 95%, and the monthly mean is not greater than 90%;

4,The earthquake intensity does not exceed 8 degrees.

5,Installed in places free of fire, explosive risk, chemical corrosion, and violent vibration.

6,The installation site shall be free of flammable substance, explosive risk, chemical corrosion and violent vibration.

Please contact the manufacturer for customizing those failed to follow the normal working conditions.

5. FAQ

1. All our activities are accredited to ISO 14001:2015 and IEC standard.

2. Technology ensure the quality satisfy international request.

3．Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.

4. For tender cooperation, it is welcome to discuss the detail in between.

XIGAO Electricenergy Group Co., Ltd is founded in 1993, 320000m2 plant, specialized in manufacturing high & low voltage power transmission and distribution (PTD) equipment, always focusing on the business at collection of research, design, OEM, ODM and trade in CN.

After 25 years innovation and effort, we build-up five wholly-owned subsidiaries (XIGAO transformer manufacturing co., Ltd, XIGAO power Equipment Co., Ltd, XIGAO power transformer manufacturing co., Ltd, XIGAO CB manufacturing co., Ltd, XIGAO Fuse accessories technology co., Ltd).meanwhile, we also gained government recognition and praise in Chinese market.

As the backbone enterprise, our group devotes to serving the power industries and tender company, installment firm at home and abroad, such as Xi'an Satellite Monitoring Center, CN Institute of Aerospace Technology Group VI, Changqing Oil Field, XAC International, Shougang Corporation, Panzhihua Iron& Steel Group, CN Southern Power Grid EHV transmission Ltd, Huazhong University, CN Metallurgical, China Electric Power Research Institute, China Railway Erju Co,.Ltd, CN Railway Engineering Group Ltd. Overseas cooperation projects: Russia, Kazakhstan, Turkey, Nigeria, Singapore, Malaysia, Bangladesh, Mongolia, Iran, Indonesia etc.

Featured and shiny products:

1. Switchgear series: H.V. Switchgear cabinet, M.V switchgear, L.V. switchgear cubicle, ring main unit

2. Substation series: combined substation, prefabricated substation

3. Load break switch series：indoor LBS, outdoor LBS.

4. Disconnecting switch series: indoor disconnector, outdoor disconnected switch

5. Power transformer series: oil type transformer, dry type transformer

6. current transformer(CT) series: oil immersed current transformer, dry type current transformer

7. voltage transformer(VT) series: oil immersed voltage transformer, dry type voltage transformer

8. metering unit series: oil immersed metering box, dry type metering box

9. Fuse series: current limiting fuse, drop out fuse

10. Insulator series: composite type insulator, porcelain type insulator

11. circuit breaker series: outdoor vacuum circuit breaker, indoor vacuum circuit breaker, SF6 circuit breaker

12. Arrester series: Porcelain Surge Arresters, Zinc Oxide Arresters

13. Wall bushing series: porcelain wall bushing, rubber wall bushing

14. Cable branch box and other related distribution products.
