| Brand Name : | CS |

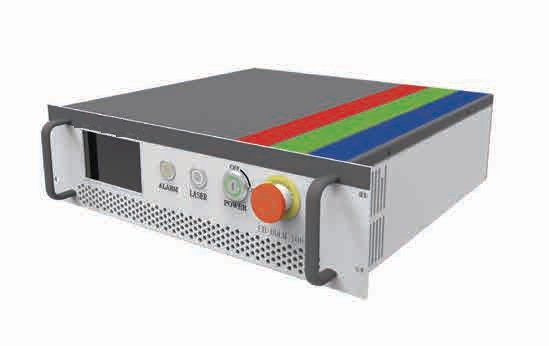

| Model Number : | EB-DDLM-200/300/400A/500A |
| Certification : | CE |
| Price : | Can be negotiation |
| Payment Terms : | L/C, D/A, D/P, T/T |
Product Features
♦ High Efficiency
♦ Red Indicator
♦ Long lifetim
Product application
♦ Plastic Welding
♦ Brazing
♦ Metal heat conduction welding
Product specification
| Optical | ||
| Center Wavelength | nm | 976 |
| Wavelength Tolerance | nm | ±20 |
| Output Power | W | 200/300/400/500 |
| Output Power Unstability | % | 1 |
| Power Tunability | % | 10-100 |
| Fiber Core | μm | 200 |
| Numerical Aperture | NA | 0.22 |
| Fiber Connector | - | QBH |
| Fiber Length | m | 5 |
| Aming Beam | ||
| Indicator Wavelength | nm | 650 |
| Output Power | mW | ≥2 |
| Eletrical | ||
| Modulate Frequency | - | CW/Modulate |
| Operation Mode | Hz | 1~10k |
| Input Voltage | - | 220VAC±10%,50/60HZ |
| Input Current | A | <10 |
| Thermal | ||
| Operating Temperature | ℃ | 5-40 |
| Storage Temperature | ℃ | -25-55 |
| Environmental Humidity | - | Max70%@25℃ |
| Cooling System | - | Water Cooling |
| Others | ||
| Dimension | mm | 550X484X133(Contains the handle) |
|
