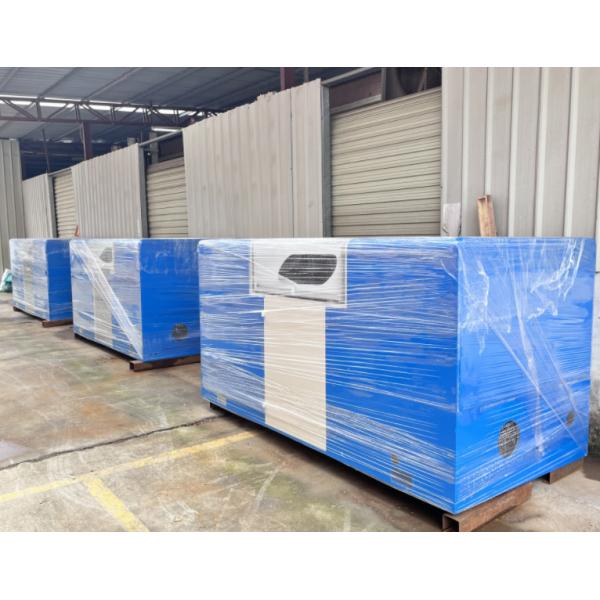

Φ630mm PLC High speed bunching machine AWG copper wire double twist power cable stranding machine eletric wire strander

Φ630mm PLC High speed bunching machine AWG copper wire double twist power cable stranding machine eletric wire strander

Application

Suitable for copper wire stranding of Power cable,Lan cable,Automatic cable,Data cable,Earphone cable etc.

Specification

1.Inlet wire dia:Φ0.16-Φ1.05mm

2.Bunched wire size:Max 6mm²

3.Lay length: 11.46-62.67mm(adjustable according to customer requirement)

4.Operation direction:“S” or “Z”

5.Take up spool size:Φ630mm

6.Max.rotating speed:Max.1800RPM/min(3600t/min)

7.Motor:10HP AC motor+frequency converter

8.Bobbin shifting:Manual hydraulic lifting

9.Traversing methods:Rolling wire with ring drive units, row pitch and breadth are adjustable

10.Protection:Automatic brake/stop

1) Wire insides and outsides is broken

2) Preset length is arrived

11.Touch screen method:Touch screen+ Siemens PLC+ Magnetic powder clutch, ensure constant tension from empty to full bobbin

Contact us for more details,pics and videos if you are interested in.

Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.

The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.

Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.

Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.
