Power Driver SMD Mounting Machine 32pcs Double Module Feeder SMT Field

Power driver SMD making machine in SMT field

Product Details

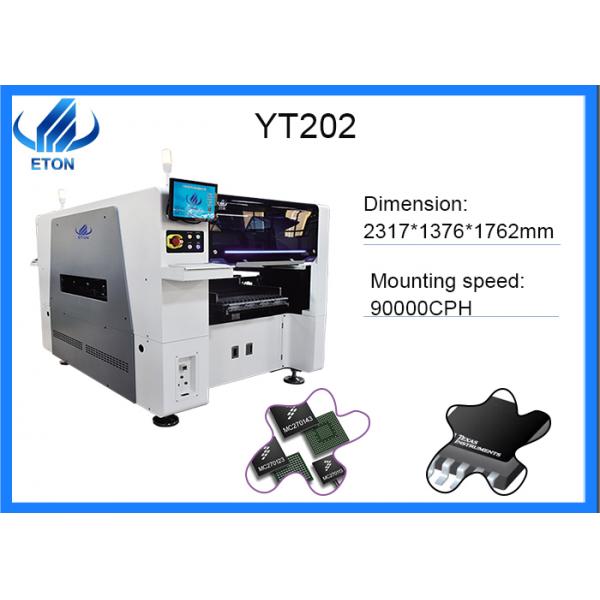

Model Number:YT202

Dimension:2317*1376*1762mm

Heads:20pcs

Weight:1700kg

Mounting Speed:90000CPH

Power:380AC 50HZ

Feeder:32pcs double module

PCB size:

MAX:500*450mm(single pcb)/500*300mm(double pcb)

MIN:50*50mm

PCB thickness:0.5-4.5mm

Core Components:Motor

Brand:ETON

Visual camera:4set of imported camera

Place of Origin:Guangdong, China

Warranty :1 Year

A comparison of the types of primary drivers

1. Switching constant current isolated power supply: high security, stable performance, high efficiency, can pass various certification; complex process, high cost; the main market for export or engineering high-end market.

2. Switching constant current non-isolated power supply: mature technology, stable performance, efficiency in the upper. High cost; the main market for engineering or general class, high-end market.

3. Linear IC power supply: stable performance, high efficiency, long life, high cost performance; output high voltage, strobe; general market.

4. Resistance-capacitance buck power supply: simple circuit, low cost; poor performance, low efficiency, short life, poor safety; belonging to the civil low-end market.

Safety:Switching constant current isolated power supply>Switching constant current non-isolated power supply>Linear IC power supply>Resistance-capacitance buck power supply

Performance parameter:Linear IC power supply>Switching constant current isolated power supply>Switching constant current non-isolated power supply>Resistance-capacitance buck power supply

Cost:Switching constant current isolated power supply>Switching constant current non-isolated power supply>Linear IC power supply>Resistance-capacitance buck power supply

The components and functions of LED driver

The components and functions of LED driver are generally switch power supply, by rectifier circuit, EMC circuit, PFC circuit, sampling circuit and other important components are transformer, power constant current/constant voltage chip, safety capacitor, transistors, control chips, transformers, resistors, capacitors, diodes, inductors, optical components, fuses, PC circuit boards and other components capacitance.

Features:

YT 202 is one of the newly launched YT series products from ETON. The dual-module placement machine can produce two identical PCB boards at the same time, improving production efficiency.Under optimal conditions, the production capacity can reach 90000CPH, and the precision is very high, and the minimum mounted components can reach 0201.

(1)YT202 machine adopt High-speed multi modular head,Apply to 0201~10mm tape reel package and IC tray feeder.

(2).It equipped with 20 heads, Each placement head with independent detection function,which Optimum mounting speed reached 90,000CPH.

(3).PCB max size: 500*450mm.

(4).4 sets of camera:Components with size less than 10mm can be used to high-speed and high-precision identification.

Application:This machine is suitable for products not only LED lights, but it can also mounting BGA, CSP ,Apply to more complex PCBA board.
