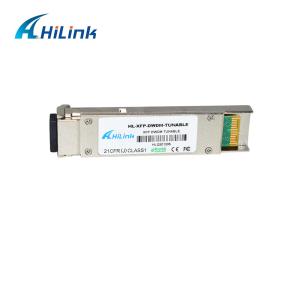

    C Band Tunable 10GBASE DWDM XFP Optical Transceiver 80KM Optical Transceiver Module

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL-DWTB-XFP-80
    Certification : CE FCC Rohs
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 100PCS Per Day
    Delivery Time : 3-5 Working Days
    • Product Details
    • Company Profile

    C Band Tunable 10GBASE DWDM XFP Optical Transceiver 80KM Optical Transceiver Module


    C-Band Tunable 10GBASE DWDM XFP 80KM Optical Transceiver Module


    Hilink 50GHz Full C -band Tunable XFP transceivers are designed for use in 10Gb/s to 11.1Gb/s 50GHz DWDM links up to 80km of G.652 fiber. The SFP+ module supports 10GBASE-ZR and –ZW applications along with SONET OC-192 LR-2 and SDH STM-64 ITU-T G.959.1 P1L1-2D2


    Item No.HL-DW-XFP-80-TVendor NameHilink
    Form TypeXFPMax Data Rate11.3Gbps
    WavelengthDWDM CH17-CH61Max Cable Distance80KM
    InterfaceLC duplexOptical ComponentsEML DWDM
    Cable TypeSMFDOM SupportYes
    TX Power-1~3dBmReceiver Sensitivity<-24dBm
    Commercial Temperature Range0 to 70°C (32 to 158°F)HTS-Harmonized Code8517706000


    Features


    • Hot-pluggable XFP footprint
    • Multi-Protocol,supports 9.95Gb/s to 11.3Gb/s bit rates
    • Monolithically integrated full C-band tunable transmitter
    • 50GHz ITU channel spacing with the integrated wavelength locker
    • C-band-tunable Laser and high-performance APD receiver
    • Maximum link length of 80km
    • Full Duplex LC connector
    • Supports Line-side and XFI loopback
    • No Reference Clock required
    • Digital diagnostic monitoring support
    • Standard bail release mechanism
    • Power dissipation <3.5W
    • Commercial operating temperature: 0°C to 70°C
    • RoHS compliant and lead-free

    Compatibility


    Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.


    Applications


    • 10G Fiber Channel

    • Other optical links

    • SONET/SDH

    • DWDM Systems


    DWDM Solution Example



    Details Photos



    Hilink Advantage


    1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
    2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
    3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
    Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
    4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
    5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
    6. We also provide DWDM CWDM WDM optical solutions.

    FAQ

    1. Can I have a sample order? What is your MOQ?
    Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
    Mixed samples are acceptable.

    2. What is the lead time?

    1-3 days after receiving the payment for the regular goods we normally keeping in stock;
    For large quantity, you'll get support and details from your sales representative of HilinkTech.


    3. What is the shipping way and how long is the period?

    DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


    4. What is your warranty?

    3-year warranty.You'll get technique support, replacement or refund.
